Top 10 questions for your potential PhD adviser/group

Everyone in grad school has taken on the task of picking the perfect research group at some point.  Then some among us had the dubious distinction of choosing the perfect research group twice.  Luckily for me, a year of grad research taught me a lot and I found myself asking group members and PIs (primary investigators) very different questions.  And luckily for you, I wrote these questions down to share with future generations.  My background as an experimental applied physicist showed through initially, so I got Shaun Maguire and Spiros Michalakis to help make it applicable for theorists too, and most of them should be useful outside physics as well.

Questions to break that silence when your potential advisor asks “So, do you have any questions for me?”

1. Are you taking new students?
– 2a. if yes: How many are you looking to take?
– 2b. if no: Ask them about the department or other professors.  They’ve been there long enough to have opinions.  Alternatively, ask what kinds of questions they would suggest you ask other PIs
3. What is the procedure for joining the group?
4. (experimental) Would you have me TA?  (This is the nicest way I thought of to ask if a PI can fund you with a research assistance-ship (RA), though sometimes they just like you to TA their class.)
4. (theory) Funding routes will often be covered by question 3 since TAs are the dominant funding method for theory students, unlike for experimentalists. If relevant, you can follow up with: How does funding for your students normally work? Do you have funding for me?
5. Do new students work for/report to other grad students, post docs, or you directly?
6. How do you like students to arrange time to meet with you?
7. How often do you have group meetings?
8. How much would you like students to prepare for them?
9. Would you suggest I take any specific classes?
10. What makes someone a good fit for this group?

And then for the high bandwidth information transfer.  Grill the group members themselves, and try to ask more than one group member if you can.

1. How much do you prepare for meetings with PI?
2. How long until people lead their own project? – Equivalently, who’s working on what projects.
3. How much do people on different projects communicate? (only group meeting or every day)
4. Is the PI hands on (how often PI wants to meet with you)?
5. Is the PI accessible (how easily can you meet with the PI if you want to)?
6. What is the average time to graduation? (if it’s important to you personally)
7. Does the group/subgroup have any bonding activities?
8. Do you think I should join this group?
9. What are people’s backgrounds?
10. What makes someone a good fit for this group?

Hope that helps.  If you have any other suggested questions, be sure to leave them in the comments.

John Preskill and the dawn of the entanglement frontier

Editor’s Note: John Preskill’s recent election to the National Academy of Sciences generated a lot of enthusiasm among his colleagues and students. In an earlier post today, famed Stanford theoretical physicist, Leonard Susskind, paid tribute to John’s early contributions to physics ranging from magnetic monopoles to the quantum mechanics of black holes. In this post, Daniel Gottesman, a faculty member at the Perimeter Institute, takes us back to the formative years of the Institute for Quantum Information at Caltech, the precursor to IQIM and a world-renowned incubator for quantum information and quantum computation research. Though John shies away from the spotlight, we, at IQIM, believe that the integrity of his character and his role as a mentor and catalyst for science are worthy of attention and set a good example for current and future generations of theoretical physicists.

Preskill's legacy may well be the incredible number of preeminent research scientists in quantum physics he has mentored throughout his extraordinary career.

Preskill’s legacy may well be the incredible number of preeminent research scientists in quantum physics he has mentored throughout his extraordinary career.

When someone wins a big award, it has become traditional on this blog for John Preskill to write something about them. The system breaks down, though, when John is the one winning the award. Therefore I’ve been brought in as a pinch hitter (or should it be pinch lionizer?).

The award in this case is that John has been elected to the National Academy of Sciences, along with Charlie Kane and a number of other people that don’t work on quantum information. Lenny Susskind has already written about John’s work on other topics; I will focus on quantum information.

On the research side of quantum information, John is probably best known for his work on fault-tolerant quantum computation, particularly topological fault tolerance. John jumped into the field of quantum computation in 1994 in the wake of Shor’s algorithm, and brought me and some of his other grad students with him. It was obvious from the start that error correction was an important theoretical challenge (emphasized, for instance, by Unruh), so that was one of the things we looked at. We couldn’t figure out how to do it, but some other people did. John and I embarked on a long drawn-out project to get good bounds on the threshold error rate. If you can build a quantum computer with an error rate below the threshold value, you can do arbitrarily large quantum computations. If not, then errors will eventually overwhelm you. Early versions of my project with John suggested that the threshold should be about 10^{-4}, and the number began floating around (somewhat embarrassingly) as the definitive word on the threshold value. Our attempts to bound the higher-order terms in the computation became rather grotesque, and the project proceeded very slowly until a new approach and the recruitment of Panos Aliferis finally let us finish a paper with a rigorous proof of a slightly lower threshold value.

Meanwhile, John had also been working on topological quantum computation. John has already written about his excitement when Kitaev visited Caltech and talked about the toric code. The two of them, plus Eric Dennis and Andrew Landahl, studied the application of this code for fault tolerance. If you look at the citations of this paper over time, it looks rather … exponential. For a while, topological things were too exotic for most quantum computer people, but over time, the virtues of surface codes have become obvious (apparently high threshold, convenient for two-dimensional architectures). It’s become one of the hot topics in recent years and there are no signs of flagging interest in the community.

John has also made some important contributions to security proofs for quantum key distribution, known to the cognoscenti just by its initials. QKD allows two people (almost invariably named Alice and Bob) to establish a secret key by sending qubits over an insecure channel. If the eavesdropper Eve tries to live up to her name, her measurements of the qubits being transmitted will cause errors revealing her presence. If Alice and Bob don’t detect the presence of Eve, they conclude that she is not listening in (or at any rate hasn’t learned much about the secret key) and therefore they can be confident of security when they later use the secret key to encrypt a secret message. With Peter Shor, John gave a security proof of the best-known QKD protocol, known as the “Shor-Preskill” proof. Sometimes we scientists lack originality in naming. It was not the first proof of security, but earlier ones were rather complicated. The Shor-Preskill proof was conceptually much clearer and made a beautiful connection between the properties of quantum error-correcting codes and QKD. The techniques introduced in their paper got adopted into much later work on quantum cryptography.

Collaborating with John is always an interesting experience. Sometimes we’ll discuss some idea or some topic and it will be clear that John does not understand the idea clearly or knows little about the topic. Then, a few days later we discuss the same subject again and John is an expert, or at least he knows a lot more than me. I guess this ability to master
topics quickly is why he was always able to answer Steve Flammia’s random questions after lunch. And then when it comes time to write the paper … John will do it. It’s not just that he will volunteer to write the first draft — he keeps control of the whole paper and generally won’t let you edit the source, although of course he will incorporate your comments. I think this habit started because of incompatibilities between the TeX editor he was using and any other program, but he maintains it (I believe) to make sure that the paper meets his high standards of presentation quality.

This also explains why John has been so successful as an expositor. His
lecture notes for the quantum computation class at Caltech are well-known. Despite being incomplete and not available on Amazon, they are probably almost as widely read as the standard textbook by Nielsen and Chuang.

Before IQIM, there was IQI, and before that was QUIC.

Before IQIM, there was IQI, and before that was QUIC.

He apparently is also good at writing grants. Under his leadership and Jeff Kimble’s, Caltech has become one of the top places for quantum computation. In my last year of graduate school, John and Jeff, along with Steve Koonin, secured the QUIC grant, and all of a sudden Caltech had money for quantum computation. I got a research assistantship and could write my thesis without having to worry about TAing. Postdocs started to come — first Chris Fuchs, then a long stream of illustrious others. The QUIC grant grew into IQI, and that eventually sprouted an M and drew in even more people. When I was a student, John’s group was located in Lauritsen with the particle theory group. We had maybe three grad student offices (and not all the students were working on quantum information), plus John’s office. As the Caltech quantum effort grew, IQI acquired territory in another building, then another, and then moved into a good chunk of the new Annenberg building. Without John’s efforts, the quantum computing program at Caltech would certainly be much smaller and maybe completely lacking a theory side. It’s also unlikely this blog would exist.

The National Academy has now elected John a member, probably more for his research than his twitter account (@preskill), though I suppose you never know. Anyway, congratulations, John!

-D. Gottesman

Of magnetic monopoles and fast-scrambling black holes

Editor’s Note: On April 29th, 2014, the National Academy of Sciences announced the new electees to the prestigious organization. This was an especially happy occasion for everyone here at IQIM, since the new members included our very own John Preskill, Richard P. Feynman Professor of Theoretical Physics and regular blogger on this site. A request was sent to Leonard Susskind, a close friend and collaborator of John’s, to take a trip down memory lane and give the rest of us a glimpse of some of John’s early contributions to Physics. John, congratulations from all of us here at IQIM.

Preskill-John_7950_WebJohn Preskill was elected to the National Academy of Sciences, an event long overdue. Perhaps it took longer than it should have because there is no way to pigeon-hole him; he is a theoretical physicist, and that’s all there is to it.

John has long been one of my heroes in theoretical physics. There is something very special about his work. It has exceptional clarity, it has vision, it has integrity—you can count on it. And sometimes it has another property: it can surprise. The first time I heard his name come up, sometime around 1979, I was not only surprised; I was dismayed. A student whose name I had never heard of, had uncovered a serious clash between two things, both of which I deeply wanted to believe in. One was the Big-Bang theory and the other was the discovery of grand unified particle theories. Unification led to the extraordinary prediction that Dirac’s magnetic monopoles must exist, at least in principle. The Big-Bang theory said they must exist in fact. The extreme conditions at the beginning of the universe were exactly what was needed to create loads of monopoles; so many that they would flood the universe with too much mass. John, the unknown graduate student, did a masterful analysis. It left no doubt that something had to give. Cosmology gave. About a year later, inflationary cosmology was discovered by Guth who was in part motivated by Preskill’s monopole puzzle.

John’s subsequent career as a particle physicist was marked by a number of important insights which often had that surprising quality. The cosmology of the invisible axion was one. Others had to do with very subtle and counterintuitive features of quantum field theory, like the existence of “Alice strings”. In the very distant past, Roger Penrose and I had a peculiar conversation about possible generalizations of the Aharonov-Bohm effect. We speculated on all sorts of things that might happen when something is transported around a string. I think it was Roger who got excited about the possibilities that might result if a topological defect could change gender. Alice strings were not quite that exotic, only electric charge flips, but nevertheless it was very surprising.

John of course had a long standing interest in the quantum mechanics of black holes: I will quote a passage from a visionary 1992 review paper, “Do Black Holes Destroy Information?

“I conclude that the information loss paradox may well presage a revolution in fundamental physics.”

At that time no one knew the answer to the paradox, although a few of us, including John, thought the answer was that information could not be lost. But almost no one saw the future as clearly as John did. Our paths crossed in 1993 in a very exciting discussion about black holes and information. We were both thinking about the same thing, now called black hole complementarity. We were concerned about quantum cloning if information is carried by Hawking radiation. We thought we knew the answer: it takes too long to retrieve the information to then be able to jump into the black hole and discover the clone. This is probably true, but at that time we had no idea how close a call this might be.

It took until 2007 to properly formulate the problem. Patrick Hayden and John Preskill utterly surprised me, and probably everyone else who had been thinking about black holes, with their now-famous paper “Black Holes as Mirrors.” In a sense, this paper started a revolution in applying the powerful methods of quantum information theory to black holes.

We live in the age of entanglement. From quantum computing to condensed matter theory, to quantum gravity, entanglement is the new watchword. Preskill was in the vanguard of this revolution, but he was also the teacher who made the new concepts available to physicists like myself. We can now speak about entanglement, error correction, fault tolerance, tensor networks and more. The Preskill lectures were the indispensable source of knowledge and insight for us.

Congratulations John. And congratulations NAS.

-L. S.

Clocking in at a Cambridge conference

Science evolves on Facebook.

On Facebook last fall, I posted about statistical mechanics. Statistical mechanics is the physics of hordes of particles. Hordes of molecules, for example, form the stench seeping from a clogged toilet. Hordes change in certain ways but not in the reverse ways, suggesting time points in a direction. Once a stink diffuses into the hall, it won’t regroup in the bathroom. The molecules’ locations distinguish past from future.

The post attracted a comment by Ian Durham, associate professor of physics at St. Anselm College. Minutes later, we were instant-messaging about infinitely long evolutions.* The next day, I sent Ian a paper draft. His reply made me jump more than a whiff of a toilet would. Would I discuss the paper at a conference he was co-organizing?

I almost replied, Are you sure?

Then I almost replied, Yes, please!

The conference, “Eddington and Wheeler: Information and Interaction,” unfolded this March at the University of Cambridge. Cambridge employed Sir Arthur Eddington, the astronomer whose 1919 observation of starlight during an eclipse catapulted Einstein’s general relativity to fame. Decades later, John Wheeler laid groundwork for quantum information. Though aware of Eddington’s observation, I hadn’t known he’d researched stat mech. I hadn’t known his opinions about time. Time owns a high-rise in my heart; see the fussiness with which I catalogue “last fall,” “minutes later,” and “the next day.” Conference-goers shared news about time in the Old Combination Room at Cambridge’s Trinity College. Against the room’s wig-filled portraits, our projector resembled a souvenir misplaced by a time traveler.

P1040716

Trinity College, Cambridge.

Presenter one, Huw Price, argued that time has no arrow. It appears to in our universe: We remember the past and anticipate the future. Once a stench diffuses, it doesn’t regroup. The stench illustrates the Second Law of Thermodynamics, the assumption that entropy increases.

If “entropy” doesn’t ring a bell, never mind; we’ll dissect it in future articles. Suffice it to say that (1) thermodynamics is a branch of physics related to stat mech; (2) according to the Second Law of Thermodynamics, something called “entropy” increases; (3) entropy’s rise distinguishes the past from the future by associating the former with a low entropy and the latter with a large entropy; and (4) a stench’s diffusion illustrates the Second Law and time’s flow.

In as many universes in which entropy increases (time flows in one direction), in so many universe does entropy decrease (does time flow oppositely). So, said Huw Price, postulated the 19th-century stat-mech founder Ludwig Boltzmann. Why would universes pair up? For the reason why, driving across a pothole, you not only fall, but also rise. Each fluctuation from equilibrium—from a flat road—involves an upward path and a downward. The upward path resembles a universe in which entropy increases; the downward, a universe in which entropy decreases. Every down pairs with an up. Averaged over universes, time has no arrow.

Freidel Weinert, presenter five, argued the opposite. Time has an arrow, he said, and not because of entropy.

Ariel Caticha discussed an impersonator of time. Using a cousin of MaxEnt, he derived an equation identical to Schrödinger’s. MaxEnt, short for “the Maximum Entropy Principle,” is a tool used in stat mech. Schrödinger’s Equation describes how quantum systems evolve. To draw from Schrödinger’s Equation predictions about electrons and atoms, physicists assume that features of reality resemble certain bits of math. We assume, for example, that the t in Schrödinger’s Equation represents time. A t appeared in Ariel’s twin of Schrödinger’s Equation. But Ariel didn’t assume what physicists usually assume. MaxEnt motivated his assumptions. Interpreting Ariel’s equation poses a challenge. If a variable acts like time and smells like time, does it represent time?**

IMG_0064 copy - Version 2

A presenter uses the anachronistic projector. The head between screen and camera belongs to David Finkelstein, who helped develop the theory of general relativity checked by Eddington.

Like Ariel, Bill Wootters questioned time’s role in arguments. The co-creator of quantum teleportation wondered why one tenet of quantum physics has the form it has. Using quantum mechanics, we can’t predict certain experiments’ outcomes. We can predict probabilities—the chance that some experiment will yield Possible Outcome 1, the chance that the experiment will yield Possible Outcome 2, and so on. To calculate these probabilities, we square numbers. Why square? Why don’t the probabilities depend on cubes?

To explore this question, Bill told a story. Suppose some experimenter runs these experiments on Monday and those on Tuesday. When evaluating his story, Bill pointed out a hole: Replacing “Monday” and “Tuesday” with “eight o’clock” and “nine” wouldn’t change his conclusion. Which replacements wouldn’t change it, and which would? To what can we generalize those days? We couldn’t answer his questions on the Sunday he asked them.

Little of presentation twelve concerned time. Rüdiger Schack introduced QBism, an interpretation of quantum mechanics that sounds like “cubism.” Casting quantum physics in terms of experimenters’ actions, Rüdiger mentioned time. By the time of the mention, I couldn’t tell what anyone meant by “time.” Raising a hand, I asked for clarification.

“You are young,” Rüdiger said. “But you will grow old and die.”

The comment clanged like the slam of a door. It echoed when I followed Ian into Ascension Parish Burial Ground. On Cambridge’s outskirts, conference-goers visited Eddington’s headstone. We found Wittgenstein’s near an uneven footpath; near tangles of undergrowth, Nobel laureates’. After debating about time, we marked its footprints. Paths of glory lead but to the grave.

P1040723

Here lies one whose name was writ in a conference title: Sir Arthur Eddington’s grave.

Paths touched by little glory, I learned, have perks. As Rüdiger noted, I was the greenest participant. As he had the manners not to note, I was the least distinguished and the most ignorant. Studenthood freed me to raise my hand, to request clarification, to lack opinions about time. Perhaps I’ll evolve opinions at some t, some Monday down the road. That Monday feels infinitely far off. These days, I’ll stick to evolving science—using that other boon of youth, Facebook.

*You know you’re a theoretical physicist (or a physicist-in-training) when you debate about processes that last till kingdom come.

** As long as the variable doesn’t smell like a clogged toilet.

For videos of the presentations—including the public lecture by best-selling author Neal Stephenson—stay tuned to http://informationandinteraction.wordpress.com. My presentation appears here

With gratitude to Ian Durham and Dean Rickles for organizing “Information and Interaction” and for the opportunity to participate. With thanks to the other participants for sharing their ideas and time.

The return of the superconducting high school teacher

Last summer, I was blessed with the opportunity to learn about the basics of high temperature superconductors in the Yeh Group under the tutelage of visiting Professor Feng. We formed superconducting samples using a process known as Pulse Laser Deposition. We began testing the properties of the samples using X-Ray Diffraction, AC Susceptibility, and SQUIDs (superconducting quantum interference devices). I brought my new-found knowledge of these laboratory techniques and processes back into the classroom during this past school year. I was able to answer questions about the formation, research, and applications of superconductors that I had been unable to address prior to this valuable experience.

This summer I returned to the IQIM Summer Research Institute to continue my exploration of superconductors and gain even deeper research experience. This time around I have accompanied Caltech second year graduate student Kyle Chen in testing samples using the Scanning Tunneling Microscope (STM), some of which I helped form using Pulse Laser Deposition with Professor Feng last summer. I have always been curious about how we can have atomic resolution. This has been my big chance to have hands-on experience working with STM that makes it possible!

The Scanning Tunneling Microscope was invented by the late Heinrich Rohrer and Gerd Binnig at IBM Research in Zurich, Switzerland in 1981. STM is able to scan the surface contours of substances using a sharp conductive tip. The electron tunneling current through the tip of the microscope is exponentially dependent on the distance (few Angstroms) to the substance surface. The changing currents at different locations can then be compiled to produce three dimensional images of the topography of the surface on the nano-scale. Or conversely the distance can be measured while the current is held constant. STM has a much higher resolution of images and avoids the problems of diffraction and spherical aberration from lenses. This level of control and precision through STM has enabled scientists to use tools with nanometer precision, allowing scientists even to manipulate atoms and their bonds. STM has been instrumental in forming the field of nanotechnology and the modern study of DNA, semiconductors, graphene, topological insulators, and much more! Just five years after building their first STM, Rohrer and Binning’s work rightfully earned them the 1986 Nobel Prize in Physics.

Descending into the Sloan basement, Kyle and I work to prepare and scan several high temperature superconducting (HTSC) Calcium Doped YBCO (\rm Y_{1-x} Ca_x Ba_2 Cu_3 O_{7-\delta}) samples in order better to understand the pairing mechanism that causes Cooper Pairs for superconductivity. In regular metals, the pairing mechanism via phonon lattice vibrations is fairly well understood by physicists. Meanwhile, the pairing mechanism for HTSC is still a mystery. We are also investigating how this pairing changes with doping, as well as how the magnetic field is channeled up vortices within HTSC.

One of our first tasks is to make probe tips for STM. Adding Calcium Chloride to de-ionized water, we are preparing a liquid conductive path to begin the chemical etching of the probe tip. Using a 10V battery, a wire bent into a ring is connected to the battery and placed in the Calcium Chloride solution. Then a thin platinum iridium wire, also connected to the voltage source, is placed at the center of the conductive ring. The circuit is complete and a current of about half an Ampere is used to erode uniformly the outer surface of the platinum iridium wire, forming a sharp tip. We examine the tip under a traditional microscope to scrutinize our work. Ideally, the tip is only one atom thick! If not, we are charged with re-etching until we reach a more suitable straight, uniform, sharp tip.   As we work to prepare the platinum iridium tips, a stoic picture of Neils Bohr looks down at our work with the appropriate adjacent quotation, ” When it comes to atoms, language can be used only as in poetry.  The poet, too, is not nearly so concerned with describing facts as with creating images. ”  After making two or three nearly perfect tips, we clean and store them in the tip case and proceed to the next step of preparation.

We are now ready to clean the sample to be tested. Bromine etching removes any oxidation or impurities that have formed on our sample, leaving a top bromine film layer. We remove the bromine-residue layer with ethanol and then plunge further into the (sub)basement to load the sample into the STM casing before oxidation begins again. The STM in the Yeh Lab was built by Professor Nai-Chang Yeh and her students eleven years ago. There are multiple layers of vacuum chambers and separate dewars, each with its own meticulous series of steps to prepare for STM testing. At the center is a long, central STM tube. Surrounding this is a large cylindrical dewar. On the perimeter is an exterior large vacuum chamber.

First we must load the newly etched YBCO sample and tip into the central STM tube. The inner tube currently lays across a work bench beneath desk lamps. We must transfer the tiny tip from the tip case to just above the sample. While loading the tip with an equally minuscule flathead screwdriver, it became quite clear to me that I could never be a surgeon! The superconducting sample is secured in place with a small cover plate and screw. A series of electronic tests for resistance and capacitance must be conducted to confirm that there are no shorts in the numerous circuits. Next we must vacuum pump the inner cylindrical tube holding the sample, tip, and circuitry until the pressure is 10^{-4} Bar. Then we “bake” the inner chamber, using a heater to expel any other gas, while the vacuum pump continues until we reach approximately 10^{-5} Bar. The heater is turned off and the vacuum continues to pump until we reach 10^{-6} Bar. This entire vacuum process takes approximately 15 hours…

During this span of time, I have the opportunity to observe the dark, cold STM room. The door, walls and ceiling are covered with black rubber and spongy padding to absorb vibration. The STM room is in the lowest level basement for the same reason. The vibration from human steps near the testing generates noise in the data, so every precaution is made to minimize noise. Giant cement blocks lay across the STM metal box to increase inertia and decrease noise. I ask Kyle what he usually does with this “down” time. We discuss the importance of reading equipment manuals to grasp a better understanding of the myriad of tools in the lab. He says he needs to continue reading the papers published by the Yeh Lab Group. In knowing what questions your research group has previously answered, one has a better understanding of the history and the direction of current work.

The next day, the vacuum-pumped inner chamber is loaded to the center of the STM dewar. We flush the surrounding chambers with nitrogen gas to extricate any moisture or impurities that may have entered since our last testing. Next we can set up the equipment for a liquid nitrogen transfer which lasts approximately 2 hours, depending on the transfer rate. As the liquid nitrogen is added to the system, we meticulously monitor the temperature of the STM system. It must reach 80 Kelvin before we again test the electronics. Eventually it is time to add the liquid helium. Since liquid helium is quite expensive, additional precautions are taken to ensure maximum efficiency for helium use. It is beautiful to watch the moisture in the air deposit in frost along the tubing connecting the nitrogen and helium tanks to the STM dewar. The stillness of the quiet basement as we wait for the transfer is calming. Again, we carefully monitor the temperature drop as it eventually reaches 4.2 Kelvin. For this research, STM must be cooled to this temperature because we must drop below the critical temperature of the sample in order to observe superconductivity. The lower the temperature, the more of the superconducting component manifests itself. Hence the spectrum will have higher resolution. Liquid nitrogen is first added because it can carry over 90% of the heat away due to its higher mass. Nitrogen is also significantly cheaper than liquid helium. The liquid helium is added later, because it is even cooler than liquid nitrogen.

After adding additional layers of rubber padding on top of the closed STM, we can move over to the computer that controls the STM tip. It takes approximately one hour for the tip to be slowly lowered within range for a tunneling current. Kyle examines the data from the approach to the surface. If all seems normal, we can begin the actual scan of the sample!
An important part of the lab work is trouble shooting. I have listed the ideal order of steps, but as with life, things do not always proceed as expected. I have grown in awe of the perseverance and ingenuity required for daily troubleshooting. The need to be meticulous in order to avoid error is astonishing. I love that some common household items can be a valuable tool in the lab. For example, copper scrubbers used in the kitchen serve as a simple conducting path around the inner STM chamber. Floss can be used to tie down the most delicate thin wires. I certainly have grown in my immense respect for the patience and brilliance required in real research.

I find irony in the quiet simplicity of recording and analyzing data, the stillness of carefully transferring liquid helium juxtaposed to the immense complexity and importance of this groundbreaking research. I appreciate the moments of simple quiet in the STM room, the fast paced group meetings where everyone chimes in on their progress, or the boisterous collaborative brainstorming to troubleshoot a new problem. The summer weeks in the Sloan basement have been a welcome retreat from the exciting, transformative, and exhausting year in the classroom. I am grateful for the opportunity to learn more about superconductors, quantum tunneling, vacuum pumps, sonicators, lab safety, and more. While I will not be bromine etching, chemically forming STM tips, or doing liquid helium transfers come September, I have a new-found love for the process of research that I will radiate to my students.

High School Physics Teacher Embedded on A Quest to Squash Quantum Noise

Date: 8/22/2013

Location: Caltech Cryo Lab, West Bridge:

Hello: I am Steve Maloney, a Physics and Chemistry teacher intern from Duarte High School, sponsored by IQIM (Institute for Quantum Information and Matter), doing whatever I can to be of assistance to Dr. Nicolas Smith-Lefebvre. Upon meeting him in mid-June I soon learned that our mission for the length of my visit was to assist him in determining with a greater degree of certainty the linear expansion coefficient of silicon in and around 125 K. (See below)


Fig. 1: Silicon cavity.

The temperature of 125 K is of special interest to operators of LIGO (Laser Interferometer Gravitational Wave Observatory), because that is one of two temperatures where the thermal expansion coefficient, \alpha, of silicon is equal to zero. A zero linear expansion coefficient is of special interest to LIGO researchers because a small change in temperature inside the cryostat, (see Fig. 2, below) will not result in a significant change in length for the silicon cavity shown in Fig. 1.


Fig. 2: Inside the Cryostat

Scientists working at LIGO need to know with great precision the length of the resonance cavity, because as gravitational waves pass through the cavity, they simultaneously compress the length of the cavity and stretch in a direction perpendicular to the shortening (warp). The arrival of a gravity wave produces a signal in the Fabry-Perot Interferometer, shown in Fig. 3, below.

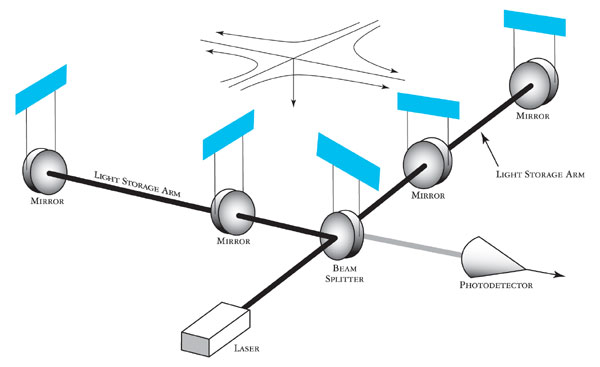

Fig. 3: LIGO set-up with Fabry-Perot cavity.

Fig. 3: LIGO set-up with Fabry-Perot cavity.

Because the interferometer is sensitive to changes in length of as little as 1X10-15 m, sources of noise must be reduced to an absolute minimum. This brings us back to establishing the Thermal Coefficient of Linear Expansion, \alpha. Knowing the value of \alpha to a greater certainty will provide LIGO researchers the mathematical tools to better correct for small changes in temperature for the cavity, thus reducing the noise, therefore increasing the sensitivity of the Gravity Wave Detector.

So Where Do I Fit In?

In the Cryo-Lab on Thursday, July 11 2013, Nicolas Smith-Lefebvre, with my assistance, fed a radio frequency of 160.13 Mhz by means of a frequency-to-voltage transducer. The frequency fed into the transducer was changed by a fixed amount, and the change in voltage was noted. The hz / volt constant obtained was 253.9 hz / mvolt.

Nicolas then locked the east-west cryo-cavities so that the beat signal was approximately 0 (zero) volts.  See the plot, below:


We then sent a 3.16 second pulse (approximated) of a 3.6 mWatt, 532 nm laser, (green) onto the surface of a mirror that reflects in the infrared, but absorbs in visible wavelengths. (Note top graph) I manufactured the electrical power interface for the laser by modifying the casing of a BIC disposable pen. The mirror was situated at the aperture of a silicon spacer.

The goal of the experiment was to determine the absorbance of the silicon mirror of the 532 nm laser.

Assuming we know the quantity of energy pulsed into the mirror:

3.6 mWatt * 3.16 s = .011376 joules,

the change in length of the cavity was determined by: Change in f/f1550nm = change in L/ L0

The change in volts (.025) gave us a change in f of 6.3475 x 103 hz.

With L0 having a value of 10 cm, that means change in L was 3.2794 x 10-10cm.

The specific heat capacity of Si is 700j/k*kg.

Coefficient of linear expansion for Si = 2.6 x 10 -6/K.

To calculate increase in temperature we need to obtain the change in L.

If 2.6 x 10 -6/C  x 10 cm x DT = DL = 3.2794 x 10-10 cm, then DT must be 1.2613 x 10 -5 K.

If DT = 1.2613 x 10-5 K , then Q must equal .41 kg x 700 j/kg Kx1.2613 x 10-5 K = 3.6 x10-3 j,

Q/Epulse=  3.6 x 10-3j / 1.1376 x 10-2j = .316 absorbance.

In other words, the silicon cavity reflected about 68% of the light that struck it.

What have I come away with from this experience?

What struck me first and foremost during this summer internship in the Cryo-Lab was the importance of future knowledge workers of having certain key skills. Among them:

Proficiency in Language

Proficiency in Math

Proficiency in Science

Proficiency in Coding

I will share my insights with my local school district and I intend to capitalize on the connections I made during my experience at Caltech.

Acknowledgements:

I would like to thank the Duarte Unified School District for giving me a leave of absence, Rana Adhikari for, yet again, finding space for me in spite of my general ineptitude regarding General Relativity, Spyridon Michalakis (Spiros) for inviting me back and letting me participate in cutting-edge science, and most of all I would like to thank Nicolas Smith-Lefebvre (softball savant),  and David Yeaton-Massey (D-Mass), for their patience, generosity, and mentoring.
