The mentors that shape us

Posted on July 24, 2015 by spiros

Three years and three weeks ago I started my first blog. I wasn’t quite sure what to call it, so I went to John for advice. I had several names in mind, but John quickly zeroed in on one: Quantum Frontiers. The url was available, the name was simple and to the point, it had the word quantum in it, and it was appropriate for a blog that was to provide a vantage point from which the public could view the frontiers of quantum science. But there was a problem; we had no followers and when I first asked John if he would write something for the blog, he had said: I don’t know… I will see…maybe some day… let me think about it. The next day John uploaded More to come, the first real post on Quantum Frontiers after the introductory Hello quantum world! We had agreed on a system in order to keep the quality of the posts above some basic level: we would send each other our posts for editing before we made them public. That way, we could catch any silly typos and have a second pair of eyes do some fact-checking. So, when John sent me his first post, I went to task editing away typos. But the power that comes with being editor-in-chief corrupts. So, when I saw the following sentence in More to come…

I was in awe of Wheeler. Some students thought he sucked.

I immediately changed it to…

I was in awe of Wheeler. Some students thought less of him.

And next, when I saw John write about himself,

Though I’m 59, few students seemed awed. Some thought I sucked. Maybe I did sometimes.

I massaged it into…

Though I’m 59, few students seemed awed. Some thought I was not as good. Maybe I wasn’t sometimes.

When John published the post, I read it again for any typos I might have missed. There were no typos. I felt useful! But when I saw that all mentions of sucked had been restored to their rightful place, I felt like an idiot. John did not fire a strongly-worded email back my way asking for an explanation as to my taking liberties with his own writing. He simply trusted that I would get the message in the comfort of my own awkwardness. It worked beautifully. John had set the tone for Quantum Frontier’s authentic voice with his very first post. It was to be personal, even if the subject matter was as scientifically hardcore as it got.

So when the time came for me to write my first post, I made it personal. I wrote about my time in Los Alamos as a postdoc, working on a problem in mathematical physics that almost broke me. It was Matt Hastings, an intellectual tornado, that helped me through these hard times. As my mentor, he didn’t say things like Well done! Great progress! Good job, Spiro! He said, You can do this. And when I finally did it, when I finally solved that damn problem, Matt came back to me and said: Beyond some typos, I cannot find any mistakes. Good job, Spiro. And it meant the world to me. The sleepless nights, the lonely days up in the Pajarito mountains of New Mexico, the times I had resolved to go work for my younger brother as a waiter in his first restaurant… those were the times that I had come upon a fork on the road and my mentor had helped me choose the path less traveled.

When the time came for me to write my next post, I ended by offering two problems for the readers to solve, with the following text as motivation:

This post is supposed to be an introduction to the insanely beautiful world of problem solving. It is not a world ruled by Kings and Queens. It is a world where commoners like you and me can become masters of their domain and even build an empire.

Doi-Inthananon temple in Chiang Mai, Thailand. A breathtaking city, host of this year’s international math olympiad.

It has been way too long since my last “problem solving” post, so I leave you with a problem from this year’s International Math Olympiad, which took place in gorgeous Chiang Mai, Thailand. FiverThirtyEight‘s recent article about the dominance of the US math olympic team in this year’s competition, gives some context about the degree of difficulty of this problem:

Determine all triples (a, b, c) of positive integers such that each of the numbers: ab-c, bc-a, ca-b is a power of two.

Like Fermat’s Last Theorem, this problem is easy to describe and hard to solve. Only 5 percent of the competitors got full marks on this question, and nearly half (44 percent) got no points at all.

But, on the triumphant U.S. squad, four of the six team members nailed it.

In other words, only 1 in 20 kids in the competition solved this problem correctly and about half of the kids didn’t even know where to begin. For more perspective, each national team is comprised of the top 6 math prodigies in that country. In China, that means 6 out of something like 100 million kids. And only 3-4 of these kids solved the problem.

The coach of the US national team, Po-Shen Loh, a Caltech alum and an associate professor of mathematics at Carnegie Mellon University (give him tenure already) deserves some serious props. If you think this problem is too hard, I have this to say to you: Yes, it is. But, who cares? You can do this.

Note: I will work out the solution in detail in an upcoming post, unless one of you solves it in the comments section before then!

Update: Solution posted in comments below (in response to Anthony’s comment). Thank you all who posted some of the answers below. The solution is far from trivial, but I still wonder if an elegant solution exists that gives all four triples. Maybe the best solution is geometric? I hope one of you geniuses can figure that out!

Ant-Man and the Quantum Realm

Posted on July 20, 2015 by spiros

It was the first week of August last summer and I was at LAX for a trip to North Carolina as a guest speaker at Project Scientist’s STEM summer camp for young women. I had booked an early morning flight and had arrived at my gate with time to spare, so I decided to get some breakfast. I walked by a smart-looking salad bar and thought: Today is the day. Moving past the salad bar, I ordered a juicy cheeseburger with fries at the adjacent McDonald’s. Growing up in Greece, eating McDonald’s was a rare treat; as was playing video games with my brothers and reading comic books late at night. Yet, through a weird twist of fate, it was these last two guilty pleasures that were to become my Hadouken!, my Hulk, Smash! of choice for breaking down the barriers between the world of quantum mechanics and the everyday reality of our super-normal, super-predictable lives.

I finished my burger, stuffing the last few delicious fries in my mouth, when my phone buzzed – I had a call from The Science and Entertainment Exchange, a non-profit organization funded by the National Academy of Sciences, whose purpose is to bring leading scientists in contact with Hollywood in order to elevate the level of science in the movies. I was to report to Atlanta, GA for a movie consult on a new superhero movie: Ant-Man. As I listened to the director of the Exchange discuss the assignment, I grumbled to myself: Why can’t I be the guy who works on Thor? Who is this Ant-Man anyways? But, in typical Hollywood fashion, the call had a happy ending: “Paul Rudd is Ant-Man. He may be at the meeting, but I can’t promise anything.” Marvel would cover my expenses, so my reluctant reply went something like this:

Hell yeah.

The meeting was in three days time. I would finish my visit to Queens University in Charlotte, NC and take the next flight out to Atlanta. But first, some fun and games were in order. As part of my visit to Project Scientist’s camp, I was invited to teach quantum mechanics to a group of forty girls, ages 8-12, all of whom were interested in science, engineering and mathematics and many of whom did not have the financial means to pursue these interests outside of the classroom. So, I went to Queens University with several copies of MinecraftEDU, the educational component to one of the most popular video games of all time: Minecraft. As I described in “Can a game teach kids quantum mechanics”, I spent the summer of 2013 designing qCraft, a modification (mod) to Minecraft that allows players to craft blocks imbued with quantum superpowers such as quantum superposition and quantum entanglement. The mod, developed in collaboration with Google and TeachersGaming, became popular, amassing millions of downloads around the world. But it is one thing to look at statistics as a measure of success, and another to look into the eyes of these girls as they lost themselves in a game (qCraft is free to download and comes with an accompanying curriculum) designed to teach them the heady concepts that inspired Richard Feynman to quip: If you think you understand quantum theory, you don’t.

My visit to Charlotte was so wonderful that I nearly decided to cancel my trip to Atlanta in order to stay with the girls and their mentors until the end of the week. But Mr. Rudd deserved the very best science could offer, so I boarded my flight and resolved to bring Project Scientist to Caltech the next summer. On my way to Atlanta, I used the in-flight WiFi to do some research on Ant-Man. He was part of the original Avengers, a founding member, in fact (nice!) His name was Dr. Hank Pym. He had developed a particle, aptly named after himself, which allowed him to shrink the space between atoms (well now…) He embedded vials of that particle in a suit that allowed him to shrink to the size of an ant (of course, that makes sense.) In short, he was a mad, mad scientist. And I was called in to help his successor, Scott Lang (Paul Rudd’s character), navigate his way through the physics of shrinking. Holy guacamole Ant-man! How does one shrink the space between atoms? As James Kakalios, author of The Physics of Superheroes, puts it in a recent article on Nate Silver’s FiveThirtyEight:

We’re made of atoms, and the neighboring atoms are all touching each other. One method of changing your size that’s out: Just squeeze the atoms closer together.
…
So the other option: What determines the size of atoms anyway?
…
We can calculate this with quantum mechanics, and it turns out to be the ratio of fundamental constants: Planck’s constant and the mass of an electron and the charge of the electron and this and that. The thing that all these constants have in common is that they’re constant. They don’t change.

Wonderful. Just peachy. How am I supposed to come up with a way that will allow Ant-Man to shrink to the size of an ant, if one of the top experts in movie science magic thinks that our best bet is to somehow change fundamental constants of nature?

Enter Pinewood Studios

The flight was longer than I expected, which gave me time to think. A limo was waiting for me at the airport; I was to be taken directly to Pinewood Studios, luggage in hand and all. Once I was at my destination, I was escorted to the 3rd floor of a nondescript building, accessible only through special authorization (nice touch, Marvel). I was shown to what seemed like the main conference room, an open area with a large conference table. I expected that I would have to wait an hour before anyone showed up, so I started fiddling with my phone, making myself look busy. The next time I looked up, Paul Rudd was tapping my shoulder, dressed in sweats after what seemed like a training session for The 300.

The Meeting

Within minutes, the director (Peyton Reed), the writers, producers, VFX specialists, computer playback experts (I became friends with their supervisor, Mr. Matthew Morrissey, who went to great lengths to represent the atoms on-screen as clouds of probability, in the s, p, d, f orbital configurations you see flashing in quantum superposition behind Hank Pym at his lab) and everyone else involved with the movie was in the room. I sat at the head of the long table with Paul next to me. He asked most of the questions along with the director, but at the time I didn’t know Paul was involved with writing the script. We discussed a lot of things, but what got everyone excited was when I told them that the laws of physics as we know them may break down as we delve deeper and deeper into the quantum realm. You see, all of the other superheroes, no matter how strong and super, had powers that conformed to the laws of physics (stretching them from time to time, but never breaking them). But if someone could go to a place where the laws of physics as we know them were not yet formed, at a place where the arrow of time was broken and the fabric of space was not yet woven, the powers of such a master of the quantum realm would only be constrained by their ability to come back to the same (or similar) reality from which they departed. All the superheroes of Marvel and DC Comics combined would stand no chance against Ant-Man with a malfunctioning regulator…

The Quantum Realm

The birth of the term itself is an interesting story. Brad Winderbaum, co-producer for the movie, emailed me a couple of days after the meeting with the following request: Could I come up with a term describing Ant-Man going to the “microverse”? The term “microverse” carried legal baggage, so something fresh was needed. I offered “going nano”, “going quantum”, “going atomic”, or… “quantum realm”. I didn’t know how small the “microverse” scale was supposed to be in a writer’s mind (in a physicist’s mind it is exactly $10^{-6}$ meters – one thousandth of a millimeter), hence the many options. The reply was quick:

Thanks Spiros! Quantum Realm is a pretty great term.

Et voilà. Ant-Man was going to the quantum realm, a place where time and space dissolve and the only thing strong enough to anchor Scott Lang to reality is… You have to watch the movie to see what that is – it was an off-the-cuff remark I made at the meeting… At the end of the meeting, Paul, Peyton and the others thanked me and asked me if I could fly to San Francisco the next week for the first week of shooting. There, I would have met Michael Douglas and Evangeline Lilly, but I declined the generous offer. It was the week of Innoworks Academy at Caltech, an award-winning summer camp for middle school kids on the free/reduced lunch program. As the camp’s adviser, I resolved to never miss a camp as long as I was in the country and San Francisco is in the same state as Caltech. My mom would be proud of my decision (I hope), though an autograph from Mr. Douglas would have fetched me a really good hug.

The Movie

I just watched the movie yesterday (it is actually good!) and the feeling was surreal. Because I had no idea what to expect. Because I never thought that the people in that room would take what I was saying seriously enough to use it in the movie. I never got a copy of the script and during the official premiere three weeks ago, I was delivering a lecture on the future of quantum computing in a monastery in Madrid, Spain. When I found out that Kevin Feige, president of Marvel Studios, said this at a recent interview, my heart skipped several beats:

But the truth is, there is so much in Ant-Man: introducing a new hero, introducing a very important part of technology in the Marvel universe, the Pym particles. Ant-Man getting on the Avengers’ radar in this film and even – this is the weirdest part, you shouldn’t really talk about it because it won’t be apparent for years – but the whole notion of the quantum realm and the whole notion of going to places that are so out there, they are almost mind-bendingly hard to fathom. It all plays into Phase Three.

The third phase of the Marvel Cinematic Universe is about to go quantum and all I can think of is: I better start reading comic books again. But first, I have to teach a bunch of 8-12 year-old girls quantum physics through Minecraft. It is, after all, the final week of Project Scientist here at Caltech this summer and the theme is coding. With quantum computers at the near horizon, these young women need to learn how to program Asimov’s laws of quantum robotics into our benevolent quantum A.I. overlords. These young women are humanity’s new hope…

Of Supersoakers and squeezed states

Posted on July 7, 2015 by Nicole Yunger Halpern

“BBs,” the lecturer said. I was sitting in the center of my row of seats, the two yards between me and the whiteboard empty. But I fancied I hadn’t heard correctly. “You know, like in BB guns?”

I had heard correctly. I nodded.

“Did you play with BB guns when you were a kid?”

I nodded again.

“I had BB guns,” the lecturer ruminated. “I had to defend myself from my brothers.”

I nodded more vigorously. My brother and I love each other, but we’ve crossed toy pistols.

“Photons are like BBs, like bullets.”

Light, the lecturer continued, behaves like BBs under certain conditions. Under other conditions, light behaves differently. Different behaviors correspond to different species of light. Some species, we can approximate with classical (nonquantum*) physics. Some species, we can’t.

Kids begged less for BB guns, in my experience, than for water guns. I grew up in Florida, where swimming season stretches from April till September. To reload a BB gun, you have to fetch spent BBs. But, toting a Supersoaker, you swim in ammunition.

Water guns brought to mind water waves, which resemble a species of classical light. If BBs resemble photons, I mused, what about Supersoaker sprays? Water balloons?

I resolved to draw as many parallels as I could between species of light and childhood weapons.

Under scrutiny, the Supersoaker analogy held little water (sorry). A Supersoaker releases water in a stream, rather than in a coherent wave. By coherent, I mean that the wave has a well-defined wavelength: The distance from the first crest to the second equals the distance from the second to the third, and so on. I can’t even identify crests in the Supersoaker photo below.

http://facstaff.gpc.edu/~pgore/PhysicalScience/Waves.html, http://www.mlive.com/living/grand-rapids/index.ssf/2009/07/happy_birthday_super_soaker_mo.html

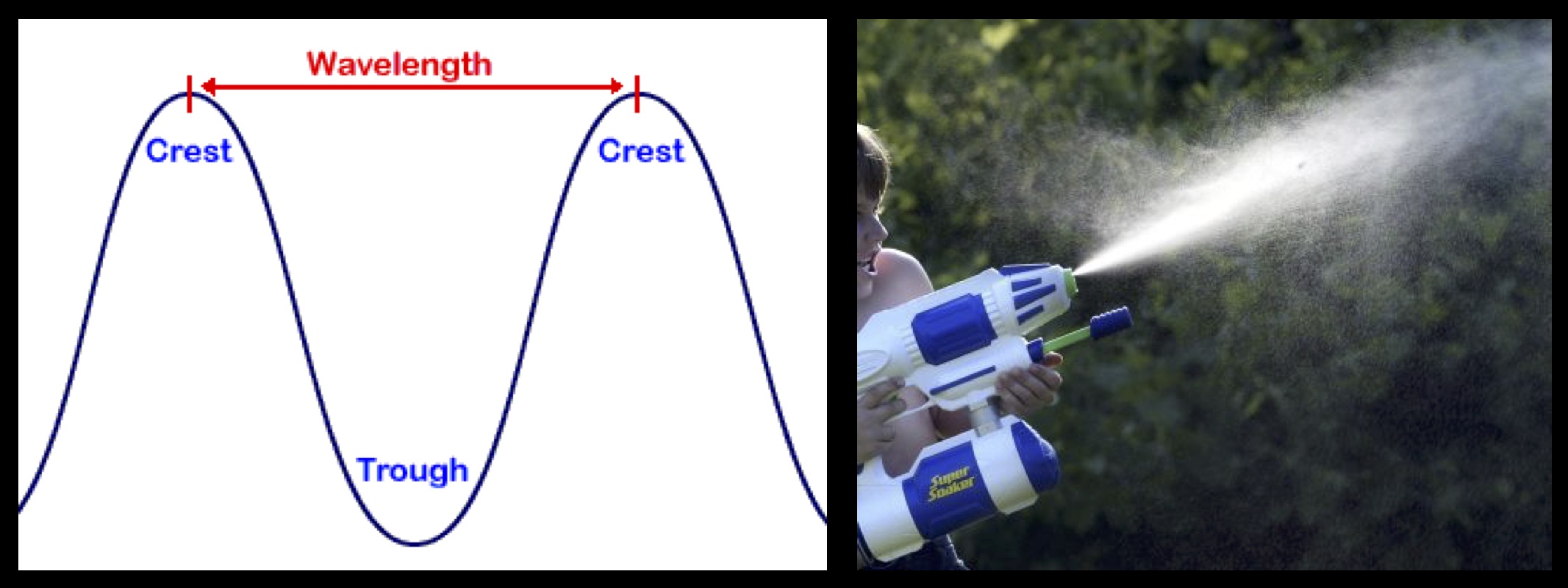

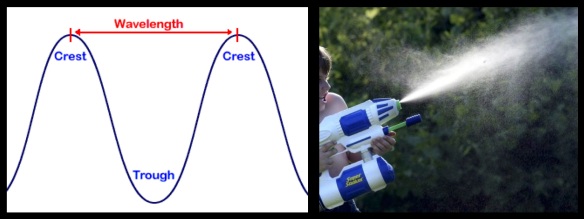

Coherent waves vs. Supersoaker not-really-waves

Maybe Supersoaker sprays resemble incoherent light? Incoherent light is a mixture of waves of all different wavelengths. Classical physics approximates incoherent light, examples of which include sunlight. If you tease apart sunlight into coherent components, you’ll find waves with short wavelengths (such as ultraviolet rays), waves with medium (such as light we can see), and waves with long (such as microwaves). You can’t ascribe just one wavelength to incoherent light, just as I seemed unable to ascribe a wavelength to Supersoaker sprays.

But Supersoaker sprays differ from incoherent light in other respects. I’d expect triggers, for instance, to introduce nonlinearity into the spray’s dynamics. Readers who know more than I about fluid mechanics can correct me.

Though far-reaching and forceful, Supersoakers weigh down combatants and are difficult to hide. If you need ammunition small enough for a sneak attack, I recommend water balloons. Water balloons resemble squeezed states, which form a quantum class of light related to the Uncertainty Principle.

Werner Heisenberg proposed that, the more you know about a quantum particle’s position, the less you can know about its momentum, and vice versa. Let’s represent your uncertainty about the position by Δ_x and your uncertainty about the momentum by Δ_p. The product of these uncertainties can’t dip below some number, represented by ћ/2:

$\Delta_x \Delta_p \geq \frac{\hbar}{2}$ .

Neither uncertainty, for example, can equal zero. Heisenberg’s proposal has evolved into more rigorous, more general forms. But the story remains familiar: The lesser the “spread in the possible values” of some property (like position), the greater the “spread in the possible values” of another property (like momentum).

Imagine plotting the possible positions along a graph’s horizontal axis and the possible momenta along the vertical. The points that could characterize our quantum system form a blob of area ћ/2. Doesn’t the blob resemble a water balloon?

Imagine squeezing a water balloon along one direction. The balloon bulges out along another. Now, imagine squeezing most of the quantum uncertainty along one direction in the diagram. You’ve depicted a squeezed state.

http://www.rp-photonics.com/squeezed_states_of_light.html

Depiction of a squeezed state

Not all childhood weapons contain water or BBs, and not all states of light contain photons.^** A vacuum is a state that consists of zero photons. Classical physics suggests that the vacuum is empty and lacks energy. A sliver of energy, called zero-point energy, pervades each quantum vacuum. The Uncertainty Principle offers one reason why.

The vacuum reminds me of the silent treatment. Silence sounds empty, but it can harbor malevolence as quantum vacua harbor energy. Middle-school outcasts beware zero-point malice.

Retreating up Memory Lane, I ran out of analogies between classes of light and childhood weapons. Children play with lasers (with laser pointers and laser-tag guns), and lasers emit (approximately) coherent light. But laser light’s resemblance to laser light doesn’t count as an analogy. The class of incoherent light includes thermal states. (Non-experts, I’m about to spew jargon. If you have the energy, I recommend Googling the italicized terms. If you haven’t, feel free to skip to the next paragraph.) Physicists model much of the natural world with thermal states. To whichever readers identify childhood weapons that resemble them, I offer ten points. I offer 20 for mimicry of solitons or solitary waves, and 25 for that of parametric down-conversion or photon antibunching.

But if sunshine and Supersoakers lure you away from your laptop, I can’t object. Happy summer.

With thanks to Bassam Helou for corrections and discussions.

^*Pardon my simplifying inaccuracy. Some nonquantum physics is nonclassical.

^**More precisely, not all Fock states correspond to particle numbers $n > 0$ . Alternatively: Not all states of light correspond to positive expectation values $\langle \hat{n} \rangle > 0$ of the particle-number operator $\hat{n}$ .
