Tripping over my own inner product

A scrape stood out on the back of my left hand. The scrape had turned greenish-purple, I noticed while opening the lecture-hall door. I’d jounced the hand against my dining-room table while standing up after breakfast. The table’s corners form ninety-degree angles. The backs of hands do not.

Earlier, when presenting a seminar, I’d forgotten to reference papers by colleagues. Earlier, I’d offended an old friend without knowing how. Some people put their feet in their mouths. I felt liable to swallow a clog.

The lecture was for Ph 219: Quantum ComputationI was TAing (working as a teaching assistant for) the course. John Preskill was discussing quantum error correction.

Computers suffer from errors as humans do: Imagine setting a hard drive on a table. Coffee might spill on the table (as it probably would have if I’d been holding a mug near the table that week). If the table is in my California dining room, an earthquake might judder the table. Juddering bangs the hard drive against the wood, breaking molecular bonds and deforming the hardware. The information stored in computers degrades.

How can we protect information? By encoding it—by translating the message into a longer, encrypted message. An earthquake might judder the encoded message. We can reverse some of the damage by error-correcting.

Different types of math describe different codes. John introduced a type of math called symplectic vector spaces. “Symplectic vector space” sounds to me like a garden of spiny cacti (on which I’d probably have pricked fingers that week). Symplectic vector spaces help us translate between the original and encoded messages.

cactus-garden

Symplectic vector space?

Say that an earthquake has juddered our hard drive. We want to assess how the earthquake corrupted the encoded message and to error-correct. Our encryption scheme dictates which operations we should perform. Each possible operation, we represent with a mathematical object called a vector. A vector can take the form of a list of numbers.

We construct the code’s vectors like so. Say that our quantum hard drive consists of seven phosphorus nuclei atop a strip of silicon. Each nucleus has two observables, or measurable properties. Let’s call the observables Z and X.

Suppose that we should measure the first nucleus’s Z. The first number in our symplectic vector is 1. If we shouldn’t measure the first nucleus’s Z, the first number is 0. If we should measure the second nucleus’s Z, the second number is 1; if not, 0; and so on for the other nuclei. We’ve assembled the first seven numbers in our vector. The final seven numbers dictate which nuclei’s Xs we measure. An example vector looks like this: ( 1, \, 0, \, 1, \, 0, \, 1, \, 0, \, 1 \; | \; 0, \, 0, \, 0, \, 0, \, 0, \, 0, \, 0 ).

The vector dictates that we measure four Zs and no Xs.

instructions

Symplectic vectors represent the operations we should perform to correct errors.

A vector space is a collection of vectors. Many problems—not only codes—involve vector spaces. Have you used Google Maps? Google illustrates the step that you should take next with an arrow. We can represent that arrow with a vector. A vector, recall, can take the form of a list of numbers. The step’s list of twonumbers indicates whether you should walk ( \text{Northward or not} \; | \; \text{Westward or not} ).

google-maps

I’d forgotten about my scrape by this point in the lecture. John’s next point wiped even cacti from my mind.

Say you want to know how similar two vectors are. You usually calculate an inner product. A vector v tends to have a large inner product with any vector w that points parallel to v.

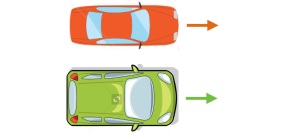

parallel

Parallel vectors tend to have a large inner product.

The vector v tends to have an inner product of zero with any vector w that points perpendicularly. Such v and w are said to annihilate each other. By the end of a three-hour marathon of a research conversation, we might say that v and w “destroy” each other. v is orthogonal to w.

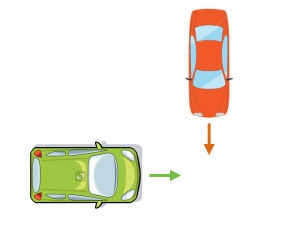

cars

Two orthogonal vectors, having an inner product of zero, annihilate each other.

You might expect a vector v to have a huge inner product with itself, since v points parallel to v. Quantum-code vectors defy expectations. In a symplectic vector space, John said, “you can be orthogonal to yourself.”

A symplectic vector2 can annihilate itself, destroy itself, stand in its own way. A vector can oppose itself, contradict itself, trip over its own feet. I felt like I was tripping over my feet that week. But I’m human. A vector is a mathematical ideal. If a mathematical ideal could be orthogonal to itself, I could allow myself space to err.

perp-to-self

Tripping over my own inner product.

Lloyd Alexander wrote one of my favorite books, the children’s novel The Book of Three. The novel features a stout old farmer called Coll. Coll admonishes an apprentice who’s burned his fingers: “See much, study much, suffer much.” We smart while growing smarter.

An ant-sized scar remains on the back of my left hand. The scar has been fading, or so I like to believe. I embed references to colleagues’ work in seminar Powerpoints, so that I don’t forget to cite anyone. I apologized to the friend, and I know about symplectic vector spaces. We all deserve space to err, provided that we correct ourselves. Here’s to standing up more carefully after breakfast.

table-corner

1Not that I advocate for limiting each coordinate to one bit in a Google Maps vector. The two-bit assumption simplifies the example.

2Not only symplectic vectors are orthogonal to themselves, John pointed out. Consider a string of bits that contains an even number of ones. Examples include (0, 0, 0, 0, 1, 1). Each such string has a bit-wise inner product, over the field {\mathbb Z}_2, of zero with itself.

Building the future

At the start of the academic year, my high school Physics students want an easy lab with simple, clear-cut data.  They are satisfied with a clear-cut conclusion. Open-ended labs, especially those without cookbook procedures are at first daunting and intimidating.  Having to take time to troubleshoot a problem is a painful process for them, as it can be for many.  As the year progresses, they seem to grow more comfortable with their own exploration of Physics trends.

IMG_20160728_092229

Another happy day in Sloan

There is no set manual for real scientific research, for uncharted territory. Exciting, new research has no “right” answer upon which to compare your data. And building your own, unique experimental set-up inherently requires much time to minimize new issues. It is interesting to me that when there is less guidance based on previous research, there is a larger possibility for great, new discoveries.

This summer I again retreated from the summer heat, plunging into the Caltech sub basements to further my understanding of the freshest research, efficient laboratory techniques, and culture in Physics research. The quiet hum of the air conditioner and lights marked an eerie contrast to the non-stop, bustling life of the classroom. It was an even more stark contrast to my 16-month-old daughter’s incessant joyful and curious exploration of the world.

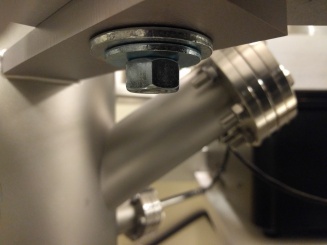

IMG_20160623_101138

The SEM Chamber

My first project this summer focused on helping to get the SEM (Scanning Electron Microscope) up and running. Once the SEM is functional the first samples it will scan are solar cells comprised of graphene nanotubes. If grand scaled and mass produced, methane may be one source of the necessary carbon for graphene. What if we contained methane gases that are already problematically being released into our greenhouse-gas-ridden atmosphere and subsequently used them to make graphene solar cells? What a win-win solution to help the daunting problem of global climate change?

Helping to set up the SEM involved a variety of interesting tasks: I found the working distance from the SEM gun to the sample holder that would soon be loaded into the chamber. I researched Pirani gauge parts and later rubber pads to help with damping. I helped to install copper ConFlat flanges for making low pressure seals. We used sonification to clean parts used at the SEM lab. We found and installed a nitrogen (N2) line to flush out moisture in the SEM chamber. There were numerous rounds of baking out moisture that may have collected in the chamber in the years since this SEM was last in use.

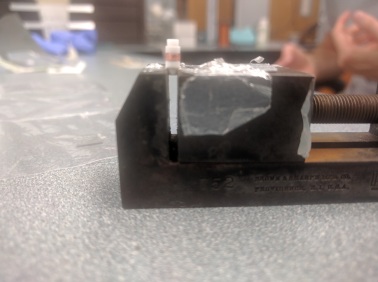

IMG_20160705_102914

A tube scanner head

During “down time”, such as when the SEM chamber was being pumped down to less than one-part-per-billion pressure with multiple vacuum pumps, we directed our attention to two other projects. The first was making parts for the tube scanner head. Due to the possibility of burning out scanner heads in the alignment process when we first turn on the SEM gun, we needed to be prepared with alternative STM parts. This involved drilling, epoxying, baking, sanding, and soldering tiny pieces.  A diminutive coaxial cable with multiple insulating layers was stripped apart so that we could properly connect the gold conducting wire from within.

During the last week I focused my efforts by returning to an interferometer set up in the sub-basement of Sloan. Last summer, part of my time was spent learning about and setting up an interferometer system in order to measure the shift of a piezoelectric stack when particular voltages were applied. Once calibrated, these piezos will be used to control the motion of the tips in our lab’s STM (Scanning Tunneling Microscope). This summer was different because we had additional equipment from Thorlabs in order to move further along with the project.

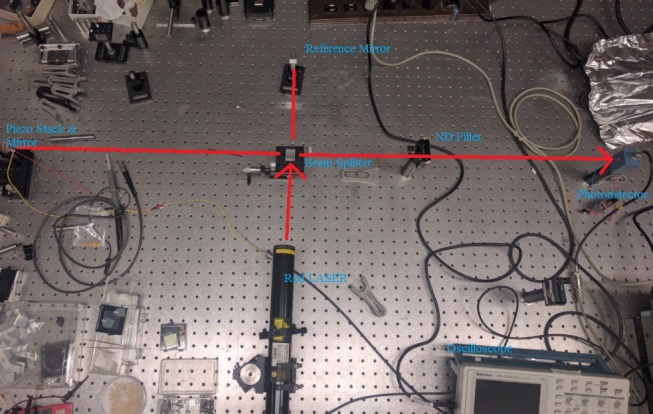

Piezo Interferometer Pic 2

Overhead view of the interferometer set-up.

On the day of arrival of the much-needed parts, I felt like a child at Christmas. Ready, set, go. Racing against the impending end of the internship and start of the upcoming academic year, I worked to assemble our equipment.

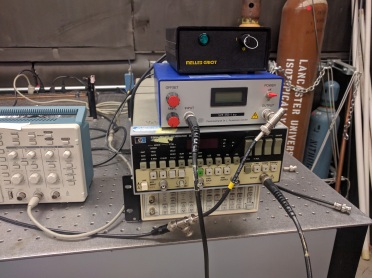

IMG_20160729_104852

LASER, function generator, amplifier.

This same procedure was completed roughly a decade ago by graduate students in our lab. Now, though, the remaining calibrated piezos have been used. In order to continue doing important STM measurements, new piezo stacks need to be calibrated.

A ray of red, coherent light from our LASER is directed to a beamsplitter. One arm of light is directed to a mirror and reflected back to the beamsplitter. Another arm of light is directed to a mirror fixed upon the piezoelectric stack. Depending on the applied voltage and particular piezo stacks, the orientation and magnitude of the shear varies. A signal generator and amplifier are connected to the opposite end of the piezoelectric stacks to carefully control the voltage signal applied to the piezos.  Once the beams are recombined at the beamsplitter, they should interfere.  An interference pattern should be detected on the oscilloscope.

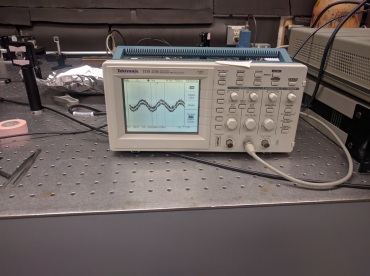

IMG_20160729_104837

Confirmation that my oscilloscope was working properly

At first it was plain fun setting up the various parts, like fitting puzzle pieces with the various optics devices. The difficulty came later in troubleshooting. I had little issue with adjusting the set-up so that both beams from the LASER landed directly onto the photodetector. Getting a beautiful interference pattern was another case. Making sense of the output signal from the photodetector on the oscilloscope was also a process. Finding joy and benefit in the learning process as opposed to frustration in a trying time is an important lesson in life.  Of course it is inevitable that there will be difficulties in life. Can we grow from the learning opportunity as opposed to complaining about the struggle?

IMG_20160728_161113

What I at first thought was the interference pattern I had been hoping for… Not so fast.

The irony is that just like my students, I wanted an easy, beautiful interference pattern that could be interpreted on our oscilloscope. I had the opportunity to learn through trial and error and from additional research on interferometers. I look forward to hearing from the lab group about the progress that is made on this project during the academic year while I am in the classroom. I am grateful to IQIM and the Yeh Lab Group for allowing me to continue participating in this exciting program.
