Achieving superlubricity with graphene

Posted on March 24, 2020 by benphysics

Sometimes, experimental results spark enormous curiosity inspiring a myriad of questions and ideas for further experimentation. In 2004, Geim and Novoselov, from The University of Manchester, isolated a single layer of graphene from bulk graphite with the “Scotch Tape Method” for which they were awarded the 2010 Nobel Prize in Physics. This one experimental result has branched out countless times serving as a source of inspiration in as many different fields. We are now in the midst of an array of branching-out in graphene research, and one of those branches gaining attention is ultra low friction observed between graphene and other surface materials.

Much has been learned about graphene in the past 15 years through an immense amount of research, most of which, in non-mechanical realms (e.g., electron transport measurements, thermal conductivity, pseudo magnetic fields in strain engineering). However, superlubricity, a mechanical phenomenon, has become the focus among many research groups. Mechanical measurements have famously shown graphene’s tensile strength to be hundreds of times that of the strongest steel, indisputably placing it atop the list of construction materials best for a superhero suit. Superlubricity is a tribological property of graphene and is, arguably, as equally impressive as graphene’s tensile strength.

Tribology is the study of interacting surfaces during relative motion including sources of friction and methods for its reduction. It’s not a recent discovery that coating a surface with graphite (many layers of graphene) can lower friction between two sliding surfaces. Current research studies the precise mechanisms and surfaces for which to minimize friction with single or several layers of graphene.

Research published in Nature Materials in 2018 measures friction between surfaces under constant load and velocity. The experiment includes two groups; one consisting of two graphene surfaces (homogeneous junction), and another consisting of graphene and hexagonal boron nitride (heterogeneous junction). The research group measures friction using Atomic Force Microscopy (AFM). The hexagonal boron nitride (or graphene for a homogeneous junction) is fixed to the stage of the AFM while the graphene slides atop. Loads are held constant at 20 𝜇N and sliding velocity constant at 200 nm/s. Ultra low friction is observed for homogeneous junctions when the underlying crystalline lattice structures of the surfaces are at a relative angle of 30 degrees. However, this ultra low friction state is very unstable and upon sliding, the surfaces rotate towards a locked-in lattice alignment. Friction varies with respect to the relative angle between the two surface’s crystalline lattice structures. Minimum (ultra low) friction occurs at a relative angle of 30 degrees reaching a maximum when locked-in lattice alignment is realized upon sliding. While in a state of lattice alignment, shearing is rendered impossible with the experimental setup due to the relatively large amount of friction.

Friction varies with respect to the relative angle of the crystalline lattice structures and is, therefore, anisotropic. For example, the fact it takes less force to split wood when an axe blade is applied parallel to its grains than when applied perpendicularly illustrates the anisotropic nature of wood, as the force to split wood is dependent upon the direction along which the force is applied. Frictional anisotropy is greater in homogeneous junctions because the tendency to orient into a stuck, maximum friction alignment, is greater than with heterojunctions. In fact, heterogeneous junctions experience frictional anisotropy three orders of magnitude less than homogeneous junctions. Heterogenous junctions display much less frictional anisotropy due to a lattice misalignment when the angle between the lattice vectors is at a minimum. In other words, the graphene and hBN crystalline lattice structures are never parallel because the materials differ, therefore, never experience the impact of lattice alignment as do homogenous junctions. Hence, heterogeneous junctions do not become stuck in a high friction state that characterizes homogeneous ones, and experience ultra low friction during sliding at all relative crystalline lattice structure angles.

Presumably, to increase applicability, upscaling to much larger loads will be necessary. A large scale cost effective method to dramatically reduce friction would undoubtedly have an enormous impact on a great number of industries. Cost efficiency is a key component to the realization of graphene’s potential impact, not only as it applies to superlubricity, but in all areas of application. As access to large amounts of affordable graphene increases, so will experiments in fabricating devices exploiting the extraordinary characteristics which have placed graphene and graphene based materials on the front lines of material research the past couple decades.

In the hour of darkness and peril and need

Posted on March 15, 2020 by Nicole Yunger Halpern

I recited the poem “Paul Revere’s Ride” to myself while walking across campus last week.

A few hours earlier, I’d cancelled the seminar that I’d been slated to cohost two days later. In a few hours, I’d cancel the rest of the seminars in the series. Undergraduates would begin vacating their dorms within a day. Labs would shut down, and postdocs would receive instructions to work from home.

I memorized “Paul Revere’s Ride” after moving to Cambridge, following tradition: As a research assistant at Lancaster University in the UK, I memorized e. e. cummings’s “anyone lived in a pretty how town.” At Caltech, I memorized “Kubla Khan.” Another home called for another poem. “Paul Revere’s Ride” brooked no competition: Campus’s red bricks run into Boston, where Revere’s story began during the 1700s.

Henry Wadsworth Longfellow, who lived a few blocks from Harvard, composed the poem. It centers on the British assault against the American colonies, at Lexington and Concord, on the eve of the Revolutionary War. A patriot learned of the British troops’ movements one night. He communicated the information to faraway colleagues by hanging lamps in a church’s belfry. His colleagues rode throughout the night, to “spread the alarm / through every Middlesex village and farm.” The riders included Paul Revere, a Boston silversmith.

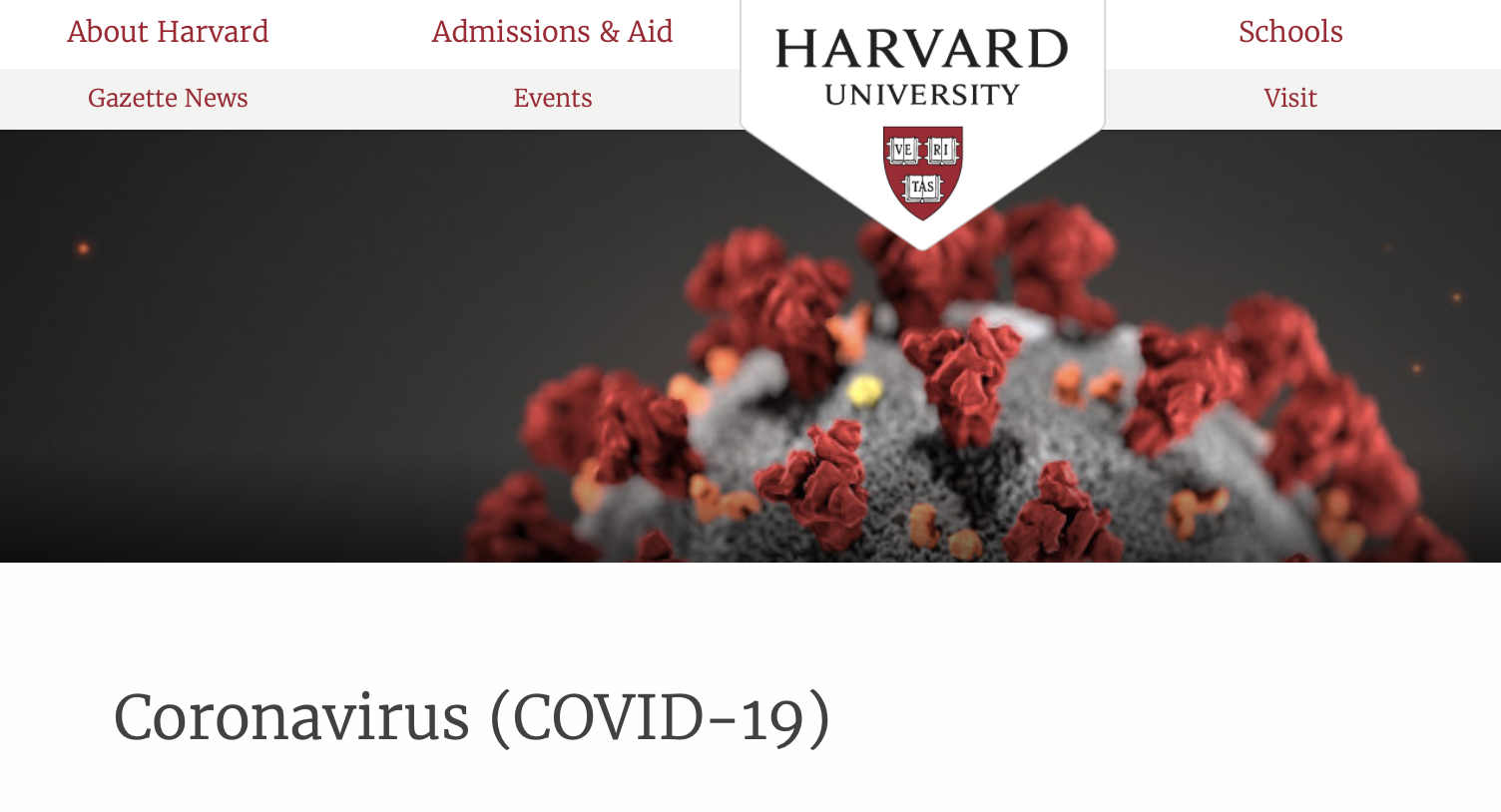

The Boston-area bricks share their color with Harvard’s crest, crimson. So do the protrusions on the coronavirus’s surface in colored pictures.

I couldn’t have designed a virus to suit Harvard’s website better.

The yard that I was crossing was about to “de-densify,” the red-brick buildings were about to empty, and my home was about to lock its doors. I’d watch regulations multiply, emails keep pace, and masks appear. Revere’s messenger friend, too, stood back and observed his home:

he climbed to the tower of the church,
Up the wooden stairs, with stealthy tread,
To the belfry-chamber overhead, [ . . . ]
By the trembling ladder, steep and tall,
To the highest window in the wall,
Where he paused to listen and look down
A moment on the roofs of the town,
And the moonlight flowing over all.

I commiserated also with Revere, waiting on tenterhooks for his message:

Meanwhile, impatient to mount and ride,
Booted and spurred, with a heavy stride,
On the opposite shore walked Paul Revere.
Now he patted his horse’s side,
Now gazed on the landscape far and near,
Then impetuous stamped the earth,
And turned and tightened his saddle-girth…

The lamps ended the wait, and Revere rode off. His mission carried a sense of urgency, yet led him to serenity that I hadn’t expected:

He has left the village and mounted the steep,
And beneath him, tranquil and broad and deep,
Is the Mystic, meeting the ocean tides…

The poem’s final stanza kicks. Its message carries as much relevance to the 21st century as Longfellow, writing about the 1700s during the 1800s, could have dreamed:

So through the night rode Paul Revere;
And so through the night went his cry of alarm
To every Middlesex village and farm,—
A cry of defiance, and not of fear,
A voice in the darkness, a knock at the door,
And a word that shall echo forevermore!
For, borne on the night-wind of the Past,
Through all our history, to the last,
In the hour of darkness and peril and need,
The people will waken and listen to hear
The hurrying hoof-beats of that steed,
And the midnight message of Paul Revere.

Reciting poetry clears my head. I can recite on autopilot, while processing other information or admiring my surroundings. But the poem usually wins my attention at last. The rhythm and rhyme sweep me along, narrowing my focus. Reciting “Paul Revere’s Ride” takes me 5-10 minutes. After finishing that morning, I repeated the poem, and began repeating it again, until arriving at my institute on the edge of Harvard’s campus.

Isolation can benefit theorists. Many of us need quiet to study, capture proofs, and disentangle ideas. Many of us need collaboration; but email, Skype, Google hangouts, and Zoom connect us. Many of us share and gain ideas through travel; but I can forfeit a little car sickness, air turbulence, and waiting in lines. Many of us need results from experimentalist collaborators, but experimental results often take long to gather in the absence of pandemics. Many of us are introverts who enjoy a little self-isolation.

https://xkcd.com/2276

April is National Poetry Month in the United States. I often celebrate by intertwining physics with poetry in my April blog post. Next month, though, I’ll have other news to report. Besides, my walk demonstrated, we need poetry now.

Paul Revere found tranquility on the eve of a storm. Maybe, when the night clears and doors reopen, science born of the quiet will flood journals. Aren’t we fortunate, as physicists, to lead lives steeped in a kind of poetry?

The shape of MIP* = RE

Posted on March 1, 2020 by Henry Yuen

There’s a famous parable about a group of blind men encountering an elephant for the very first time. The first blind man, who had his hand on the elephant’s side, said that it was like an enormous wall. The second blind man, wrapping his arms around the elephant’s leg, exclaimed that surely it was a gigantic tree trunk. The third, feeling the elephant’s tail, declared that it must be a thick rope. Vehement disagreement ensues, but after a while the blind men eventually come to realize that, while each person was partially correct, there is much more to the elephant than initially thought.

Last month, Zhengfeng, Anand, Thomas, John and I posted MIP* = RE to arXiv. The paper feels very much like the elephant of the fable — and not just because of the number of pages! To a computer scientist, the paper is ostensibly about the complexity of interactive proofs. To a quantum physicist, it is talking about mathematical models of quantum entanglement. To the mathematician, there is a claimed resolution to a long-standing problem in operator algebras. Like the blind men of the parable, each are feeling a small part of a new phenomenon. How do the wall, the tree trunk, and the rope all fit together?

I’ll try to trace the outline of the elephant: it starts with a mystery in quantum complexity theory, curves through the mathematical foundations of quantum mechanics, and arrives at a deep question about operator algebras.

The rope: The complexity of nonlocal games

In 2004, computer scientists Cleve, Hoyer, Toner, and Watrous were thinking about a funny thing called nonlocal games. A nonlocal game $G$ involves three parties: two cooperating players named Alice and Bob, and someone called the verifier. The verifier samples a pair of random questions $(x,y)$ and sends $x$ to Alice (who responds with answer $a$ ), and $y$ to Bob (who responds with answer $b$ ). The verifier then uses some function $D(x,y,a,b)$ that tells her whether the players win, based on their questions and answers.

All three parties know the rules of the game before it starts, and Alice and Bob’s goal is to maximize their probability of winning the game. The players aren’t allowed to communicate with each other during the game, so it’s a nontrivial task for them to coordinate an optimal strategy (i.e., how they should individually respond to the verifier’s questions) before the game starts.

The most famous example of a nonlocal game is the CHSH game (which has made several appearances on this blog already): in this game, the verifier sends a uniformly random bit $x$ to Alice (who responds with a bit $a$ ) and a uniformly random bit $y$ to Bob (who responds with a bit $b$ ). The players win if $a \oplus b = x \wedge y$ (in other words, the sum of their answer bits is equal to the product of the input bits modulo $2$ ).

What is Alice’s and Bob’s maximum winning probability? Well, it depends on what type of strategy they use. If they use a strategy that can be modeled by classical physics, then their winning probability cannot exceed $75\%$ (we call this the classical value of CHSH). On the other hand, if they use a strategy based on quantum physics, Alice and Bob can do better by sharing two quantum bits (qubits) that are entangled. During the game each player measures their own qubit (where the measurement depends on their received question) to obtain answers that win the CHSH game with probability $\cos^2(\pi/8) \approx .854\ldots$ (we call this the quantum value of CHSH). So even though the entangled qubits don’t allow Alice and Bob to communicate with each other, entanglement gives them a way to win with higher probability! In technical terms, their responses are more correlated than what is possible classically.

The CHSH game comes from physics, and was originally formulated not as a game involving Alice and Bob, but rather as an experiment involving two spatially separated devices to test whether stronger-than-classical correlations exist in nature. These experiments are known as Bell tests, named after John Bell. In 1964, he proved that correlations from quantum entanglement cannot be explained by any “local hidden variable theory” — in other words, a classical theory of physics.¹ He then showed that a Bell test, like the CHSH game, gives a simple statistical test for the presence of nonlocal correlations between separated systems. Since the 1960s, numerous Bell tests have been conducted experimentally, and the verdict is clear: nature does not behave classically.

Cleve, Hoyer, Toner and Watrous noticed that nonlocal games/Bell tests can be viewed as a kind of multiprover interactive proof. In complexity theory, interactive proofs are protocols where some provers are trying to convince a verifier of a solution to a long, difficult computation, and the verifier is trying to efficiently determine if the solution is correct. In a Bell test, one can think of the provers as instead trying to convince the verifier of a physical statement: that they possess quantum entanglement.

With the computational lens trained firmly on nonlocal games, it then becomes natural to ask about their complexity. Specifically, what is the complexity of approximating the optimal winning probability in a given nonlocal game $G$ ? In complexity-speak, this is phrased as a question about characterizing the class MIP* (pronounced “M-I-P star”). This is also a well-motivated question for an experimentalist conducting Bell tests: at the very least, they’d want to determine if (a) quantum players can do better than classical players, and (b) what can the best possible quantum strategy achieve?

Studying this question in the case of classical players led to some of the most important results in complexity theory, such as MIP = NEXP and the PCP Theorem. Indeed, the PCP Theorem says that it is NP-hard to approximate the classical value of a nonlocal game (i.e. the maximum winning probability of classical players) to within constant additive accuracy (say $\pm \frac{1}{10}$ ). Thus, assuming that P is not equal to NP, we shouldn’t expect a polynomial-time algorithm for this. However it is easy to see that there is a “brute force” algorithm for this problem: by taking exponential time to enumerate over all possible deterministic player strategies, one can exactly compute the classical value of nonlocal games.

When considering games with entangled players, however, it’s not even clear if there’s a similar “brute force” algorithm that solves this in any amount of time — forget polynomial time; even if we allow ourselves exponential, doubly-exponential, Ackermann function amount of time, we still don’t know how to solve this quantum value approximation problem. The problem is that there is no known upper bound on the amount of entanglement that is needed for players to play a nonlocal game. For example, for a given game $G$ , does an optimal quantum strategy require one qubit, ten qubits, or $10^{10^{10}}$ qubits of entanglement? Without any upper bound, a “brute force” algorithm wouldn’t know how big of a quantum strategy to search for — it would keep enumerating over bigger and bigger strategies in hopes of finding a better one.

Thus approximating the quantum value may not even be solvable in principle! But could it really be uncomputable? Perhaps we just haven’t found the right mathematical tool to give an upper bound on the dimension — maybe we just need to come up with some clever variant of, say, Johnson-Lindenstrauss or some other dimension reduction technique.²

In 2008, there was promising progress towards an algorithmic solution for this problem. Two papers [DLTW, NPA] (appearing on arXiv on the same day!) showed that an algorithm based on semidefinite programming can produce a sequence of numbers that converge to something called the commuting operator value of a nonlocal game.³ If one could show that the commuting operator value and the quantum value of a nonlocal game coincide, then this would yield an algorithm for solving this approximation problem!

Asking whether this commuting operator and quantum values are the same, however, immediately brings us to the precipice of some deep mysteries in mathematical physics and operator algebras, far removed from computer science and complexity theory. This takes us to the next part of the elephant.

The tree: mathematical foundations of locality

The mystery about the quantum value versus the commuting operator value of nonlocal games has to do with two different ways of modeling Alice and Bob in quantum mechanics. As I mentioned earlier, quantum physics predicts that the maximum winning probability in, say, the CHSH game when Alice and Bob share entanglement is approximately 85%. As with any physical theory, these predictions are made using some mathematical framework — formal rules for modeling physical experiments like the CHSH game.

In a typical quantum information theory textbook, players in the CHSH game are usually modelled in the following way: Alice’s device is described a state space $\mathcal{H}_A$ (all the possible states the device could be in), a particular state $|\psi_A\rangle$ from $\mathcal{H}_A$ , and a set of measurement operators $\mathcal{M}_A$ (operations that can be performed by the device). It’s not necessary to know what these things are formally; the important feature is that these three things are enough to make any prediction about Alice’s device — when treated in isolation, at least. Similarly, Bob’s device can be described using its own state space $\mathcal{H}_B$ , state $|\psi_B\rangle$ , and measurement operators $\mathcal{M}_B$ .

In the CHSH game though, one wants to make predictions about Alice’s and Bob’s devices together. Here the textbooks say that Alice and Bob are jointly described by the tensor product formalism, which is a natural mathematical way of “putting separate spaces together”. Their state space is denoted by $\mathcal{H}_A \otimes \mathcal{H}_B$ . The joint state $|\psi_{AB}\rangle$ describing the devices comes from this tensor product space. When Alice and Bob independently make their local measurements, this is described by a measurement operator from the tensor product of operators from $\mathcal{M}_A$ and $\mathcal{M}_B$ . The strange correlations of quantum mechanics arise when their joint state $|\psi_{AB}\rangle$ is entangled, i.e. it cannot be written as a well-defined state on Alice’s side combined with a well-defined state on Bob’s side (even though the state space itself is two independent spaces combined together!)

The tensor product model works well; it satisfies natural properties you’d want from the CHSH experiment, such as the constraint that Alice and Bob can’t instantaneously signal to each other. Furthermore, predictions made in this model match up very accurately with experimental results!

This is the not the whole story, though. The tensor product formalism works very well in non-relativistic quantum mechanics, where things move slowly and energies are low. To describe more extreme physical scenarios — like when particles are being smashed together at near-light speeds in the Large Hadron Collider — physicists turn to the more powerful quantum field theory. However, the notion of spatiotemporal separation in relativistic settings gets especially tricky. In particular, when trying to describe quantum mechanical systems, it is no longer evident how to assign Alice and Bob their own independent state spaces, and thus it’s not clear how to put relativistic Alice and Bob in the tensor product framework!

In quantum field theory, locality is instead described using the commuting operator model. Instead of assigning Alice and Bob their own individual state spaces and then tensoring them together to get a combined space, the commuting operator model stipulates that there is just a single monolithic space $\mathcal{H}$ for both Alice and Bob. Their joint state is described using a vector $|\psi\rangle$ from $\mathcal{H}$ , and Alice and Bob’s measurement operators both act on $\mathcal{H}$ . The constraint that they can’t communicate is captured by the fact that Alice’s measurement operators commute with Bob’s operators. In other words, the order in which the players perform their measurements on the system does not matter: Alice measuring before Bob, or Bob measuring before Alice, both yield the same statistical outcomes. Locality is enforced through commutativity.

The commuting operator framework contains the tensor product framework as a special case⁴, so it’s more general. Could the commuting operator model allow for correlations that can’t be captured by the tensor product model, even approximately⁵⁶? This question is known as Tsirelson’s problem, named after the late mathematician Boris Tsirelson.

There is a simple but useful way to phrase this question using nonlocal games. What we call the “quantum value” of a nonlocal game $G$ (denoted by $\omega^* (G)$ ) really refers to the supremum of success probabilities over tensor product strategies for Alice and Bob. If they use strategies from the more general commuting operator model, then we call their maximum success probability the commuting operator value of $G$ (denoted by $\omega^{co}(G)$ ). Since tensor product strategies are a special case of commuting operator strategies, we have the relation $\omega^* (G) \leq \omega^{co}(G)$ for all nonlocal games $G$ .

Could there be a nonlocal game $G$ whose tensor product value is different from its commuting operator value? With tongue-in-cheek: is there a game $G$ that Alice and Bob could succeed at better if they were using quantum entanglement at near-light speeds? It is difficult to find even a plausible candidate game for which the quantum and commuting operator values may differ. The CHSH game, for example, has the same quantum and commuting operator value; this was proved by Tsirelson.

If the tensor product and the commuting operator models are the same (i.e., the “positive” resolution of Tsirelson’s problem), then as I mentioned earlier, this has unexpected ramifications: there would be an algorithm for approximating the quantum value of nonlocal games.

How does this algorithm work? It comes in two parts: a procedure to search from below, and one to search from above. The “search from below” algorithm computes a sequence of numbers $\alpha_1,\alpha_2,\alpha_3,\ldots$ where $\alpha_d$ is (approximately) the best winning probability when Alice and Bob use a $d$ -qubit tensor product strategy. For fixed $d$ , the number $\alpha_d$ can be computed by enumerating over (a discretization of) the space of all possible $d$ -qubit strategies. This takes a doubly-exponential amount of time in $d$ — but at least this is still a finite time! This naive “brute force” algorithm will slowly plod along, computing a sequence of better and better winning probabilities. We’re guaranteed that in the limit as $d$ goes to infinity, the sequence $\{ \alpha_d\}$ converges to the quantum value $\omega^* (G)$ . Of course the issue is that the “search from below” procedure never knows how close it is to the true quantum value.

This is where the “search from above” comes in. This is an algorithm that computes a different sequence of numbers $\beta_1,\beta_2,\beta_3,\ldots$ where each $\beta_d$ is an upper bound on the commuting operator value $\omega^{co}(G)$ , and furthermore as $d$ goes to infinity, $\beta_d$ eventually converges to $\omega^{co}(G)$ . Furthermore, each $\beta_d$ can be computed by a technique known as semidefinite optimization; this was shown by the two papers I mentioned.

Let’s put the pieces together. If the quantum and commuting operator values of a game $G$ coincide (i.e. $\omega^* (G) = \omega^{co}(G)$ ), then we can run the “search from below” and “search from above” procedures in parallel, interleaving the computation of the $\{\alpha_d\}$ and $\{ \beta_d\}$ . Since both are guaranteed to converge to the quantum value, at some point the upper bound $\beta_d$ will come within some $\epsilon$ to the lower bound $\alpha_d$ , and thus we would have homed in on (an approximation of) $\omega^* (G)$ . There we have it: an algorithm to approximate the quantum value of games.

All that remains to do, surely, is to solve Tsirelson’s problem in the affirmative (that commuting operator correlations can be approximated by tensor product correlations), and then we could put this pesky question about the quantum value to rest. Right?

The wall: Connes’ embedding problem

At the end of the 1920s, polymath extraordinaire John von Neumann formulated the first rigorous mathematical framework for the recently developed quantum mechanics. This framework, now familiar to physicists and quantum information theorists everywhere, posits that quantum states are vectors in a Hilbert space, and measurements are linear operators acting on those spaces. It didn’t take long for von Neumann to realize that there was a much deeper theory of operators on Hilbert spaces waiting to be discovered. With Francis Murray, in the 1930s he started to develop a theory of “rings of operators” — today these are called von Neumann algebras.

The theory of operator algebras has since flourished into a rich and beautiful area of mathematics. It remains inseparable from mathematical physics, but has established deep connections with subjects such as knot theory and group theory. One of the most important goals in operator algebras has been to provide a classification of von Neumann algebras. In their series of papers on the subject, Murray and von Neumann first showed that classifying von Neumann algebras reduces to understanding their factors, the atoms out of which all von Neumann algebras are built. Then, they showed that factors of von Neumann algebras come in one of three species: type $I$ , type $II$ , and type $III$ . Type $I$ factors were completely classified by Murray and von Neumann, and they made much progress on characterizing certain type $II$ factors. However progress stalled until the 1970s, when Alain Connes provided a classification of type $III$ factors (work for which he would later receive the Fields Medal). In the same 1976 classification paper, Connes makes a casual remark about something called type $II_1$ factors⁷:

We now construct an embedding of $N$ into $\mathcal{R}$ . Apparently such an embedding ought to exist for all $II_1$ factors.

This line, written in almost a throwaway manner, eventually came to be called “Connes’ embedding problem”: does every separable $II_1$ factor embed into an ultrapower of the hyperfinite $II_1$ factor? It seems that Connes surmises that it does (and thus this is also called “Connes’ embedding conjecture“). Since 1976, this problem has grown into a central question of operator algebras, with numerous equivalent formulations and consequences across mathematics.

In 2010, two papers (again appearing on the arXiv on the same day!) showed that the reach of Connes’ embedding conjecture extends back to the foundations of quantum mechanics. If Connes’ embedding problem has a positive answer (i.e. an embedding exists), then Tsirelson’s problem (i.e. whether commuting operator can be approximated by tensor product correlations) also has a positive answer! Later it was shown by Ozawa that Connes’ embedding problem is in fact equivalent to Tsirelson’s problem.

Remember that our approach to compute the value of nonlocal games hinged on obtaining a positive answer to Tsirelson’s problem. The sequence of papers [NPA, DLTW, Fritz, JNPPSW] together show that resolving — one way or another — whether this search-from-below, search-from-above algorithm works would essentially settle Connes’ embedding conjecture. What started as a funny question at the periphery of computer science and quantum information theory has morphed into an attack on one of the central problems in operator algebras.

MIP = RE*

We’ve now ended back where we started: the complexity of nonlocal games. Let’s take a step back and try to make sense of the elephant.

Even to a complexity theorist, “MIP* = RE” may appear esoteric. The complexity classes MIP* and RE refer to a bewildering grabbag of concepts: there’s Alice, Bob, Turing machines, verifiers, interactive proofs, quantum entanglement. What is the meaning of the equality of these two classes?

First, it says that the Halting problem has an interactive proof involving quantum entangled provers. In the Halting problem, you want to decide whether a Turing machine $M$ , if you started running it, would eventually terminate with a well-defined answer, or if it would get stuck in an infinite loop. Alan Turing showed that this problem is undecidable: there is no algorithm that can solve this problem in general. Loosely speaking, the best thing you can do is to just flick on the power switch to $M$ , and wait to see if it eventually stops. If $M$ gets stuck in an infinite loop — well, you’re going to be waiting forever.

MIP* = RE shows with the help of all-powerful Alice and Bob, a time-limited verifier can run an interactive proof to “shortcut” the waiting. Given the Turing machine $M$ ‘s description (its “source code”), the verifier can efficiently compute a description of a nonlocal game $G_M$ whose behavior reflects that of $M$ . If $M$ does eventually halt (which could happen after a million years), then there is a strategy for Alice and Bob that causes the verifier to accept with probability $1$ . In other words, $\omega^* (G_M) = 1$ . If $M$ gets stuck in an infinite loop, then no matter what strategy Alice and Bob use, the verifier always rejects with high probability, so $\omega^* (G_M)$ is close to $0$ .

By playing this nonlocal game, the verifier can obtain statistical evidence that $M$ is a Turing machine that eventually terminates. If the verifier plays $G_M$ and the provers win, then the verifier should believe that it is likely that $M$ halts. If they lose, then the verifier concludes there isn’t enough evidence that $M$ halts⁸. The verifier never actually runs $M$ in this game; she has offloaded the task to Alice and Bob, who we can assume are computational gods capable of performing million-year-long computations instantly. For them, the challenge is instead to convince the verifier that if she were to wait millions of years, she would witness the termination of $M$ . Incredibly, the amount of work put in by the verifier in the interactive proof is independent of the time it takes for $M$ to halt!

The fact that the Halting problem has an interactive proof seems borderline absurd: if the Halting problem is unsolvable, why should we expect it to be verifiable? Although complexity theory has taught us that there can be a large gap between the complexity of verification versus search, it has always been a difference of efficiency: if solutions to a problem can be efficiently verified, then solutions can also be found (albeit at drastically higher computational cost). MIP* = RE shows that, with quantum entanglement, there can be a chasm of computability between verifying solutions and finding them.

Now let’s turn to the non-complexity consequences of MIP* = RE. The fact that we can encode the Halting problem into nonlocal games also immediately tells us that there is no algorithm whatsoever to approximate the quantum value. Suppose there was an algorithm that could approximate $\omega^* (G)$ . Then, using the transformation from Turing machines to nonlocal games mentioned above, we could use this algorithm to solve the Halting problem, which is impossible.

Now the dominoes start to fall. This means that, in particular, the proposed “search-from-below”/”search-from-above” algorithm cannot succeed in approximating $\omega^* (G)$ . There must be a game $G$ , then, for which the quantum value is different from the commuting operator value. But this implies Tsirelson’s problem has a negative answer, and therefore Connes’ embedding conjecture is false.

We’ve only sketched the barest of outlines of this elephant, and yet it is quite challenging to hold it in the mind’s eye all at once⁹. This story is intertwined with some of the most fundamental developments in the past century: modern quantum mechanics, operator algebras, and computability theory were birthed in the 1930s. Einstein, Podolsky and Rosen wrote their landmark paper questioning the nature of quantum entanglement in 1935, and John Bell discovered his famous test and inequality in 1964. Connes’ formulated his conjecture in the ’70s, Tsirelson made his contributions to the foundations of quantum mechanics in the ’80s, and about the same time computer scientists were inventing the theory of interactive proofs and probabilistically checkable proofs (PCPs).

We haven’t said anything about the proof of MIP* = RE yet (this may be the subject of future blog posts), but it is undeniably a product of complexity theory. The language of interactive proofs and Turing machines is not just convenient but necessary: at its heart MIP* = RE is the classical PCP Theorem, with the help of quantum entanglement, recursed to infinity.

What is going on in this proof? What parts of it are fundamental, and which parts are unnecessary? What is the core of it that relates to Connes’ embedding conjecture? Are there other consequences of this uncomputability result? These are questions to be explored in the coming days and months, and the answers we find will be fascinating.

Acknowledgments. Thanks to William Slofstra and Thomas Vidick for helpful feedback on this post.

This is why quantum correlations are called “nonlocal”, and why we call the CHSH game a “nonlocal game”: it is a test for nonlocal behavior. ↩
A reasonable hope would be that, for every nonlocal game $G$ , there is a generic upper bound on the number of qubits needed to approximate the optimal quantum strategy (e.g., a game $G$ with $Q$ possible questions and $A$ possible answers would require at most, say, $2^{O(Q \cdot A)}$ qubits to play optimally). ↩
In those papers, they called it the field theoretic value. ↩
The space $\mathcal{H}$ can be broken down into the tensor product $\mathcal{H}_A \otimes \mathcal{H}_B$ , and Alice’s measurements only act on the $\mathcal{H}_A$ space and Bob’s measurements only act on the $\mathcal{H}_B$ space. In this case, Alice’s measurements clearly commute with Bob’s. ↩
In a breakthrough work in 2017, Slofstra showed that the tensor product framework is not exactly the same as the commuting operator framework; he shows that there is a nonlocal game $G$ where players using commuting operator strategies can win with probability $1$ , but when they use a tensor-product strategy they can only win with probability strictly less than $1$ . However the perfect commuting operator strategy can be approximated by tensor-product strategies arbitrarily well, so the quantum values and the commuting operator values of $G$ are the same. ↩
The commuting operator model is motivated by attempts to develop a rigorous mathematical framework for quantum field theory from first principles (see, for example algebraic quantum field theory (AQFT)). In the “vanilla” version of AQFT, tensor product decompositions between casually independent systems do not exist a priori, but mathematical physicists often consider AQFTs augmented with an additional “split property”, which does imply tensor product decompositions. Thus in such AQFTs, Tsirelson’s problem has an affirmative answer. ↩
Type $II_1$ is pronounced “type two one”. ↩
This is not the same as evidence that $M$ loops forever! ↩
At least, speaking for myself. ↩
