Yoram Alhassid asked the question at the end of my Yale Quantum Institute colloquium last February. I knew two facts about Yoram: (1) He belongs to Yale’s theoretical-physics faculty. (2) His PhD thesis’s title—“On the Information Theoretic Approach to Nuclear Reactions”—ranks among my three favorites.1
Over the past few months, I’ve grown to know Yoram better. He had reason to ask about quantum statistical mechanics, because his research stands up to its ears in the field. If forced to synopsize quantum statistical mechanics in five words, I’d say, “study of many-particle quantum systems.” Examples include gases of ultracold atoms. If given another five words, I’d add, “Calculate and use partition functions.” A partition function is a measure of the number of states, or configurations, accessible to the system. Calculate a system’s partition function, and you can calculate the system’s average energy, the average number of particles in the system, how the system responds to magnetic fields, etc.
My colloquium concerned quantum thermodynamics, which I’ve bloggedabout many times.So I should have been able to distinguish quantum thermodynamics from its neighbors. But the answer I gave Yoram didn’t satisfy me. I mulled over the exchange for a few weeks, then emailed Yoram a 502-word essay. The exercise grew my appreciation for the question and my understanding of my field.
An adaptation of the email appears below. The adaptation should suit readers who’ve majored in physics, but don’t worry if you haven’t. Bits of what distinguishes quantum thermodynamics from quantum statistical mechanics should come across to everyone—as should, I hope, the value of question-and-answer sessions:
One distinction is a return to the operational approach of 19th-century thermodynamics. Thermodynamicists such as Sadi Carnot wanted to know how effectively engines could operate. Their practical questions led to fundamental insights, such as the Carnot bound on an engine’s efficiency. Similarly, quantum thermodynamicists often ask, “How can this state serve as a resource in thermodynamic tasks?” This approach helps us identify what distinguishes quantum theory from classical mechanics.
For example, quantum thermodynamicists found an advantage in charging batteries via nonlocal operations. Another example is the “MBL-mobile” that I designed with collaborators.Many-body localization (MBL), we found, can enhance an engine’s reliability and scalability.
Asking, “How can this state serve as a resource?” leads quantum thermodynamicists to design quantum engines, ratchets, batteries, etc. We analyze how these devices can outperform classical analogues, identifying which aspects of quantum theory power the outperformance. This question and these tasks contrast with the questions and tasks of many non-quantum-thermodynamicists who use statistical mechanics. They often calculate response functions and (e.g., ground-state) properties of Hamiltonians.
These goals of characterizing what nonclassicality is and what it can achieve in thermodynamic contexts resemble upshots of quantum computing and cryptography. As a 21st-century quantum information scientist, I understand what makes quantum theory quantum partially by understanding which problems quantum computers can solve efficiently and classical computers can’t. Similarly, I understand what makes quantum theory quantum partially by understanding how much more work you can extract from a singlet (a maximally entangled state of two qubits) than from a product state in which the reduced states have the same forms as in the singlet, .
As quantum thermodynamics shares its operational approach with quantum information theory, quantum thermodynamicists use mathematical tools developed in quantum information theory. An example consists of generalizedentropies. Entropies quantify the optimal efficiency with which we can perform information-processing and thermodynamic tasks, such as data compression and work extraction.
Most statistical-mechanics researchers use just the Shannon and von Neumann entropies, and , and perhaps the occasional relative entropy. These entropies quantify optimal efficiencies in large-system limits, e.g., as the number of messages compressed approaches infinity and in the thermodynamic limit.
Other entropic quantities have been defined and explored over the past two decades, in quantum and classical information theory. These entropies quantify the optimal efficiencies with which tasks can be performed (i) if the number of systems processed or the number of trials is arbitrary, (ii) if the systems processed share correlations, (iii) in the presence of “quantum side information” (if the system being used as a resource is entangled with another system, to which an agent has access), or (iv) if you can tolerate some probability that you fail to accomplish your task. Instead of limiting ourselves to and , we use also “-smoothed entropies,” Rényi divergences, hypothesis-testing entropies, conditional entropies, etc.
Another hallmark of quantum thermodynamics is results’ generality and simplicity. Thermodynamics characterizes a system with a few macroscopic observables, such as temperature, volume, and particle number. The simplicity of some quantum thermodynamics served a chemist collaborator and me, as explained in the introduction of https://arxiv.org/abs/1811.06551.
Yoram’s question reminded me of one reason why, as an undergrad, I adored studying physics in a liberal-arts college. I ate dinner and took walks with students majoring in economics, German studies, and Middle Eastern languages. They described their challenges, which I analyzed with the physics mindset that I was acquiring. We then compared our approaches. Encountering other disciplines’ perspectives helped me recognize what tools I was developing as a budding physicist. How can we know our corner of the world without stepping outside it and viewing it as part of a landscape?
1The title epitomizes clarity and simplicity. And I have trouble resisting anything advertised as “the information-theoretic approach to such-and-such.”
Video games have been a part of my life for about as long as I can remember. From Paperboy and The Last Ninja on the Commodore 64 when I was barely old enough to operate a keyboard, to Mario Kart 8 and Zelda on the Nintendo Switch, as a postdoc at Caltech, working on quantum computing and condensed matter physics. Up until recently, I have kept my two lives separate: my love of video games and my career in quantum physics.
The realization that I could combine quantum physics with games came during an entertaining discussion with my current supervisor, Gil Refael. Gil and I were brainstorming approaches to develop a quantum version of Tetris. Instead of stopping and laughing it off, or even keeping the idea on the horizon, Gil suggested that we talk to Spyridon (Spiros) Michalakis for some guidance.
This is not the story of Quantum Tetris (yet), but rather the story of how we made a quantum version of a much older, and possibly more universally known game. This is a new game that Spiros and myself have been testing at elementary schools.
And so I am super excited to be able to finally present to you: Quantum TiqTaqToe! As of right now, the app is available both for Android devices and iPhone/iPad:
Previous quantum games
Gil and I knew that Spiros had been involved in prior quantum games (most notably qCraft and Quantum Chess), so he seemed like the perfect contact point. He was conveniently located on the same campus, and even in the same department. But more importantly, he was curious about the idea and eager to talk.
After introducing the idea of Quantum Tetris, Spiros came up with an alternative approach. Seeing as this was going to be my first attempt at creating a video game, not to mention building a game from the ground up with quantum physics, he proposed to put me in touch with Chris Cantwell and help him improve the AI for Quantum Chess.
I thought long and hard about this proposition. Like five seconds. It was an amazing opportunity. I would get to look under the hood of a working and incredibly sophisticated video game, unlike any game ever made: the only game in the world I knew of that was truly based on quantum physics. And I would be solving a critical problem that I would have to deal with eventually, by adapting a conventional, classical rules-based game AI for quantum.
Fun and Games
My first focus was to jump on Quantum Chess full-force, with the aim of helping Chris implement a new AI player for the game. After evaluating some possible chess-playing AI engines, including state-of-the-art players based off of Google’s AlphaZero, we landed on Stockfish as our best candidate for integration. The AI is currently hot-swappable though, so users can try to develop their own!
While some of the work for implementing the AI could be done directly using Chris’s C++ implementation of Quantum Chess, other aspects of the work required me to learn the program he had used to develop the user interface. That program is called Unity. Unity is a free game development program that I would highly recommend trying out and playing around with.
This experience was essential to the birth of Quantum TiqTaqToe. In my quest to understand Unity and Quantum Games, I set out to implement a “simple” game to get a handle on how all the different game components worked together. Having a game based on quantum mechanics is one thing; making sure it is fun to play requires an entirely different skill set.
Perspective
Classic Tic-Tac-Toe is a game in which two players, called X and O, take turns in placing their symbols on a 3×3 grid. The first player to get 3 of their symbols in a line (diagonally, vertically or horizontally) wins. The game goes as far back as ancient Egypt, and evidence of the game has been found on roof tiles dating to 1300 BC [1].
Many variations of the game have existed across many cultures. The first print reference to a game called “tick-tack-toe” was in 1884. In the US the game was renamed “tic-tac-toe” sometime in the 20th century. Here’s a random fun fact: in Dutch, the game is most often referred to as “Butter-Cheese-and-Eggs” [2]. In 1952, computer scientist Alexander S. Douglas at the University of Cambridge turned it into one of the first computer games, featuring an AI player that could play perfect games against a human opponent.
Combinatorics has determined that whoever plays first will win 91 out of 138 possible board combinations. The second player will win in 44 boards. However, if both players play optimally, looking ahead through all the possible future outcomes, neither player should ever win and the game always ends in a draw, in one of only 3 board combinations.
In Quantum TiqTaqToe, with the current ruleset, we don’t yet know if a winning strategy exists.
I explicitly refer to the current ruleset because we currently limit the amount of quantumness in the game. We want to make sure the game is fun to play and ‘graspable’ for now. In addition, it turns out there already is a game called Quantum TicTacToe, developed by Allan Goff [3]. That version of TicTacToe has similar concepts but has a different set of rules.
The Game
A typical game of Quantum TiqTaqToe will look very much like regular Tic-Tac-Toe until one of the players decides to make a quantum move:

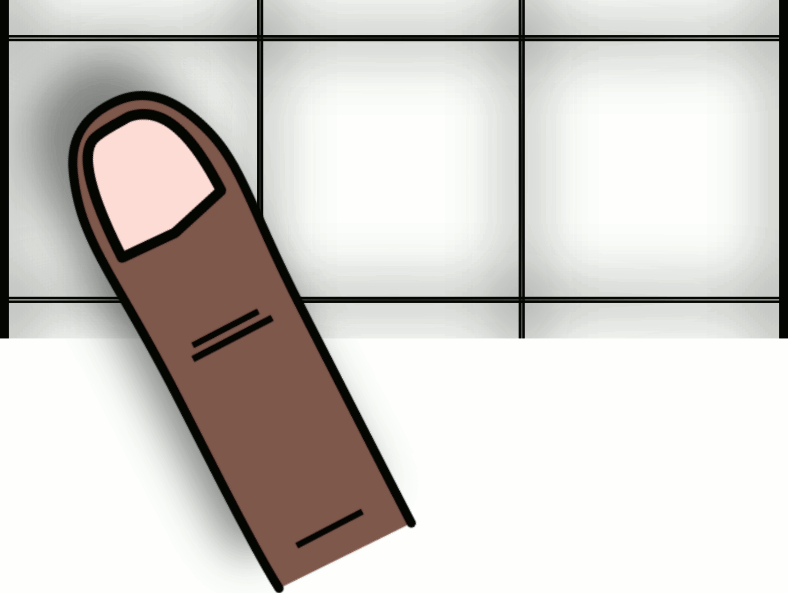

A quantum superposition is made by dragging from one empty square to another.
At this point, the game board enters into a superposition. The X is in each position with 50/50 chance; in one universe the X is on the left and in the other it is on the right. Neither player knows how things will play out. And the game only gets more interesting from here. The opponent can choose to place their O in a superposition between an empty square and a square occupied by a quantum X.

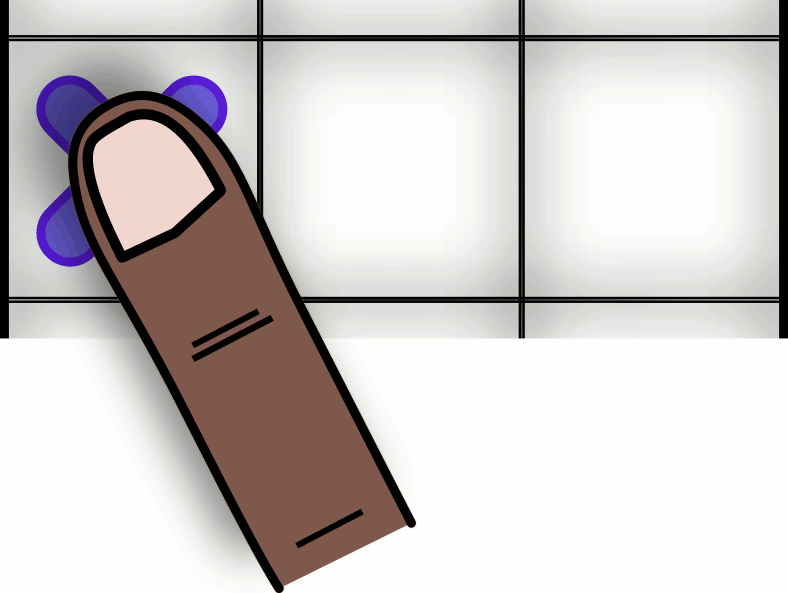

A quantum entanglement move.
Et voilà, player O has entangled his fate with his opponent’s. Once the two squares become entangled, the only outcomes are X-O or O-X, each with probability ½. Interestingly, since the game is fully quantum, the phase between the two entangled outcomes can in principle be leveraged to create interesting plays through destructive and constructive interference. The app features a simple tutorial (to be updated) that teaches you these moves and a few others. There are boards that classically result in a draw but are quantumly “winnable”.
A quick note on the quantumness
The squares in TiqTaqToe are all fully quantum. I represent them as qutrits (like qubits, but instead of having states 0 and 1 my qutrits have states 0, 1 and 2), and moves made by the players are unitary operations acting on them. So the game consists of these essential elements:
The squares of the 3×3 grid are turned into qutrits (Empty, X, O). Each move is a unitary gate operation on those qutrits. I’ll leave the details of the math out, but for the case of qubits check out Chris’ detailed writeup on Quantum Chess [4].
Quantum TiqTaqToe allows you to select two squares in the grid, providing you with the option of creating a superposition or an entangled state. For the sake of simplicity (i.e. keeping the game fun to play and ‘graspable’ for now), no more than 3 squares can be involved in a given entangled state.
I chose to explicitly track sets of qutrits that share a Hilbert space. The entire quantum state of the game combines these sets with classical strings of the form “XEEOXEOXE”, indicating that the first square is an X, the second is Empty, etc.
Victory in the multiverse
So, when does the game end if these quantum states are in play? In Quantum TiqTaqToe, the board collapses to a single classical state as soon as it is full (i.e. every square is non-empty). The resulting state is randomly chosen from all the possible outcomes, with a probability that is equal to the (square of the) wave-function amplitude (basic quantum mechanics). If there is a winner after the collapse, the game ends. Otherwise, the game continues until either there is a winner or until there are no more moves to be made (ending in a draw). On top of this, players get the option to forfeit their move for the opportunity to cause a partial collapse of the state, by using the collapse-mode. Future versions may include other ways of collapse, including one that does not involve rolling dice! [5]
Can you beat the quantum AI?
Due to quantum physics and the collapse of the state, the game is inherently statistical. So instead of asking: “Can I beat my opponent in a game of Quantum TiqTaqToe?” one should ask “If I play 100 games against my opponent, can I consistently win more than 50 of them?”
You can test your skill against the in-game quantum AI to see if you’ve indeed mastered Quantum TiqTaqToe yet. At the hardest setting, winning even 30% of the time after, say, 20 games may be extraordinary. The implementation of this AI, by the way, would have been a blog-post by itself. For the curious, I can say it is based on the ExpectiMiniMax algorithm. As of the moment of this writing, the hardest AI setting is not available in the app yet. Keep your eyes out for an update soon though!
The future
“Perhaps kids who grow up playing quantum games will acquire a visceral understanding of quantum phenomena that our generation lacks.” – John Preskill, in his recent article [6].
From the get-go, Quantum TiqTaqToe (and Quantum Chess) have had outreach as a core motivation. Perhaps future quantum engineers and quantum programmers will look back on their youth and remember playing Quantum TiqTaqToe as I remember my Commodore 64 games. I am convinced that these small steps into the realm of Quantum Games are only just the beginning of an entirely new genre of fun and useful games.
In the meantime, we are hard at work implementing an Online mode so you can play with your fellow human friends remotely too. This online mode, plus the option of fighting a strong quantum AI, will be unlockable in-game through a small fee (unless you are an educator who wishes to introduce quantum physics in class through this game; those use cases are fee-free courtesy of IQIM and NSF). Each purchase will go towards supporting the future development of exciting new Quantum TiqTaqToe features, as well as other exciting Quantum Games (Tetris, anyone?)
Just in case you missed it: the app is available both for Android devices and iPhone/iPad right now:
I really hope you enjoy the game, and perhaps use it to get your friends and family excited about quantum physics. Oh, and start practicing! You never know if the online mode will bring along with it a real Quantum TiqTaqToe Tournament down the road 😉
[2] The origin of this name in Dutch isn’t really certain as far as I know. Alledgedly, it is a left-over from the period in which butter, cheese and eggs were sold at the door (so was milk, but that was done separately since it was sold daily). The salesman had a list with columns for each of these three products, and would jot down a cross or a zero whenever a customer at an address bought or declined a product. Three crosses in a row would earn them praise from the boss.
